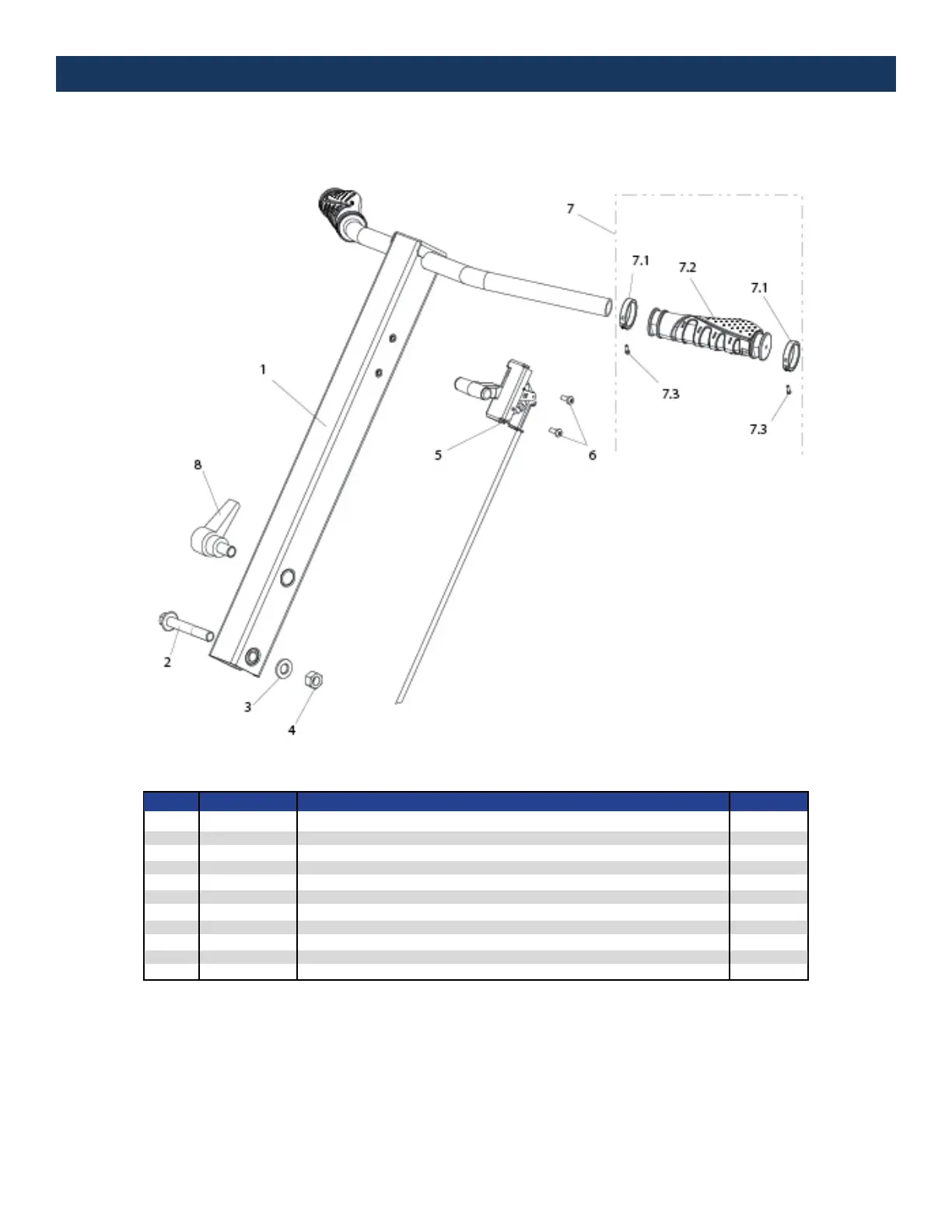

17. ILLUSTRATED PARTS LISTS
TEE HANDLE ASSEMBLY
Tee Handle
Hex Flanged Bolt - M12x80, Zinc, 8.8
Flat Washer - M12, Zinc
Nylock Nut - M12, Zinc
Throttle Cable, Bracket, & Lever - 53 in
Machine Screw - PPH M5x16, Zinc
Ergonomic Grip Assembly
Grip Clamp
Ergonomic Grip
Socket Hed Cap Screw - M3x12, Zinc, 8.8
Knob - Tee Handle Adjustment
PART NO. DESCRIPTION QTY.
ITEM
1
2
3
4
5
6
7
7.1
7.2
7.3
8
W10470
W10471
W10371
W10472
W4110
W10474
W10475
W10476
W10477
W10478
W10552
1
1
1
1
1
2
2
2
1
2
1
