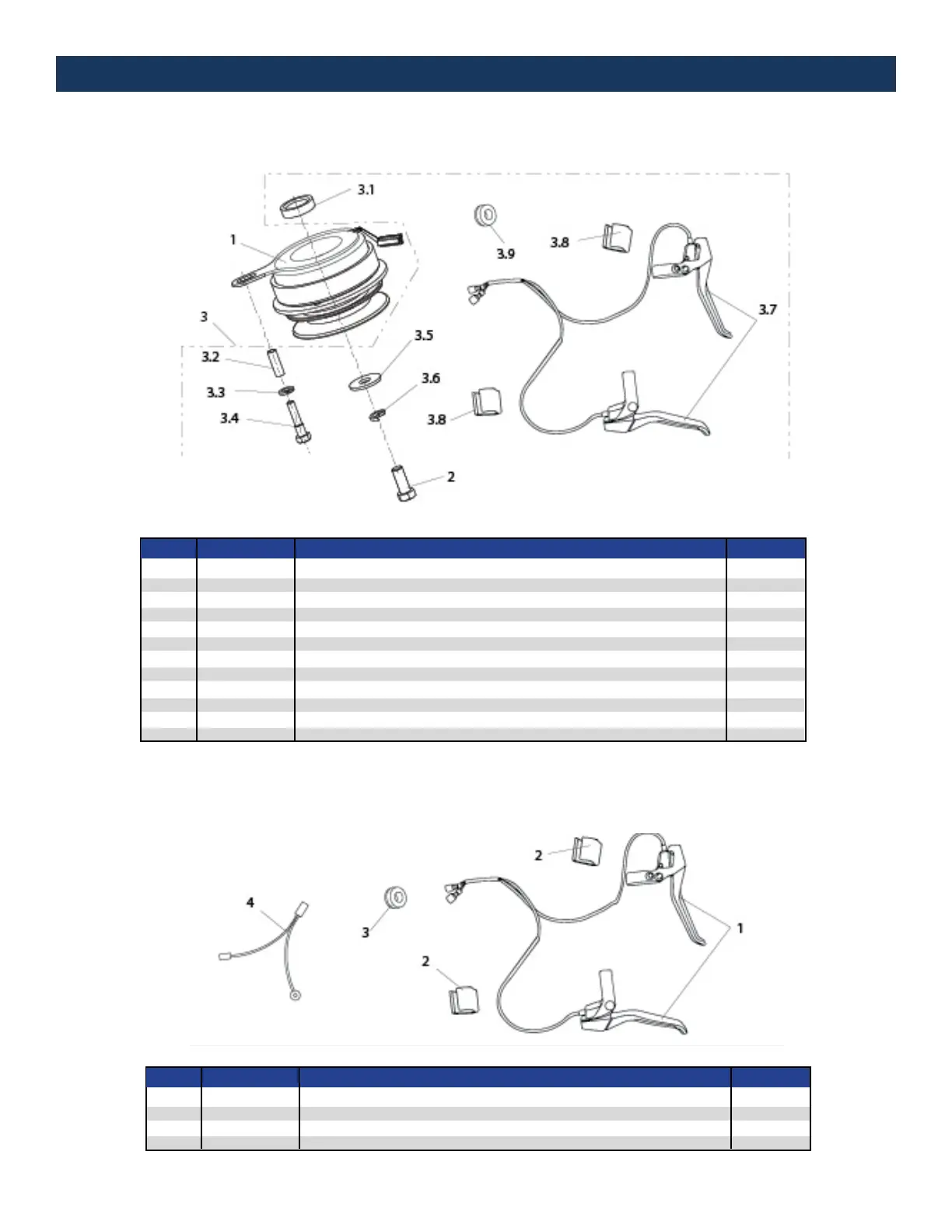

17. ILLUSTRATED PARTS LISTS
CLUTCH SYSTEM
OPERATOR PRESENCE SYSTEM
CVX Electric Clutch CCW 12V w/ 4" Pulley
Bolt - HCS 7/16-20 X 1.5 Z5
Clutch Component Assembly
Clutch Upper Spacer
Sleeve - Clutch Arm Support Bolt
Split Lock Washer - M10, Zinc
Bolt - Clutch Arm Support
Flat Washer - M13, Zinc
Split Lock Washer - M12, Zinc
Clutch Handle Set - Incl L+R+Wiring
Wire Clip
Rubber Grommet - 18 mm hole
PART NO. DESCRIPTION QTY.
ITEM
1
2
3
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
W1210
F17159
W50010
W10493
W10494
W10495
W10496
W10415
W10372
W10497
W10498
W10499
1
1
1
1
1
1
1
1
1
1
2
1
Clutch Handle Set - Incl L+R+Wiring
Wire Clip
Rubber Grommet - 18 mm hole
Wiring Harness - Operator Presence System
PART NO. DESCRIPTION QTY.
ITEM
1
2
3
4
W10497
W10498
W10499
W10528
1
2
1
1
