11
Mincing
Group B

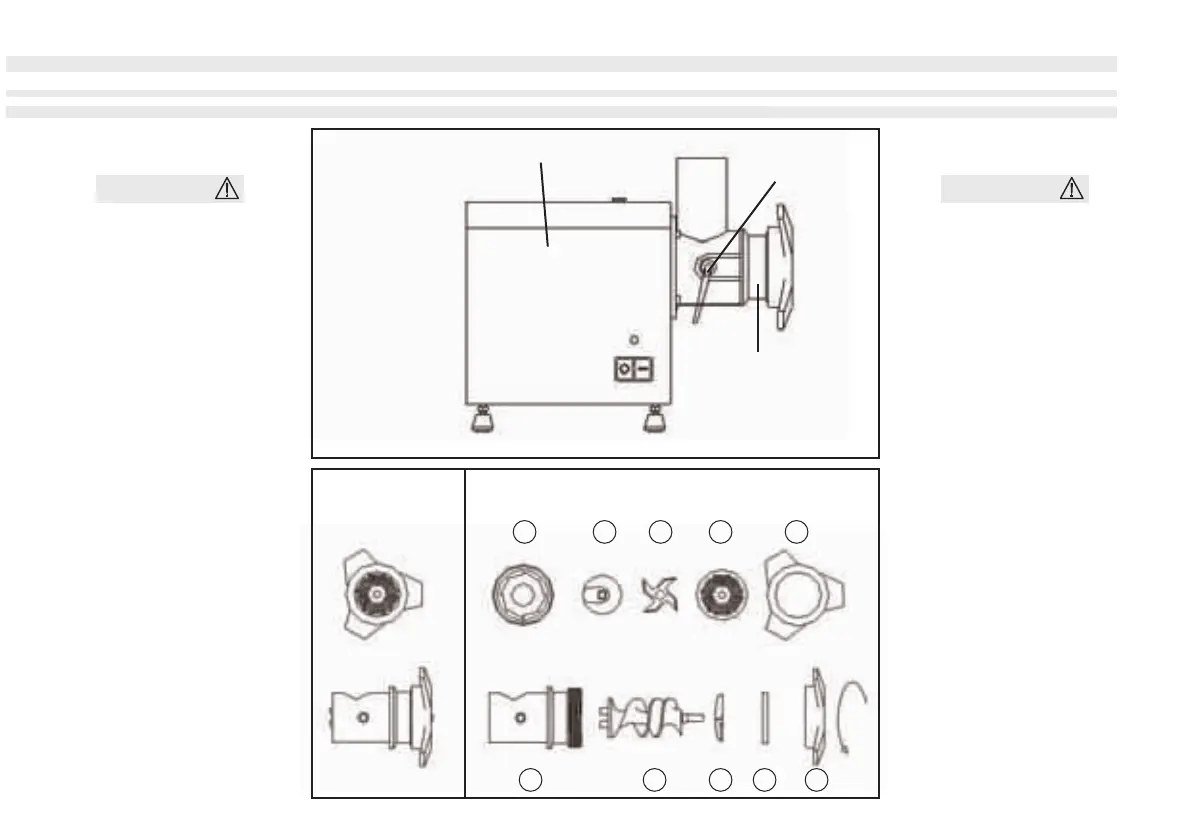

Stripped Down Mincing Group B
3.2 Mounting of the
mincing group
The mounting operations of
each part of the machine must
be done when the machine is
switched off and unplugged
from the socket.
The mounting of the mincing group
on the machine happens in two
phases:
The first phase is carrying out on a
workbench following the order
carried below:
1) Fit into the union (1) in this order:
the worm (2), the self-sharpening
knife (3), the perforated plate (4);
2) Screw down and fasten the
handwheel (5).
The second phase is carrying out
on the machine:
1) Fit till the joint of the full mincing
group B is blocked on the
machine A;
2) Fasten the handle (or knob) C till
the mincing group B is blocked
on the machine A;
3) In these conditions the machine
is ready to work.
3.3 Dismantling of the
mincing group
The dismantling operations of
each part of the machine must
be done when the machine is
switched off and unplugged
from the socket.
The dismantling of the mincing group
on the machines happens in two
phases:
The first phase is carrying out on the
machine following the order carried
below:
1) Slack the handle (or knob) till the
mincing group is able to exit from
the machine A;
2) Pulling out the mincing group B
from the machine A.
The second phase is carrying out
on a workbench following the order
carried below:
1) Unscrew completely the
handwheel (5);
2) Take out the worm (2), the self-
sharpening knife (3) and the
perforated plate (4) from the auger
(1);
3) Proceed with the cleaning.
1
2
3
4
5
1
2
3
4
5
Complete Machine A
Handle C
Mincing
Group B
WARNING WARNING
