10



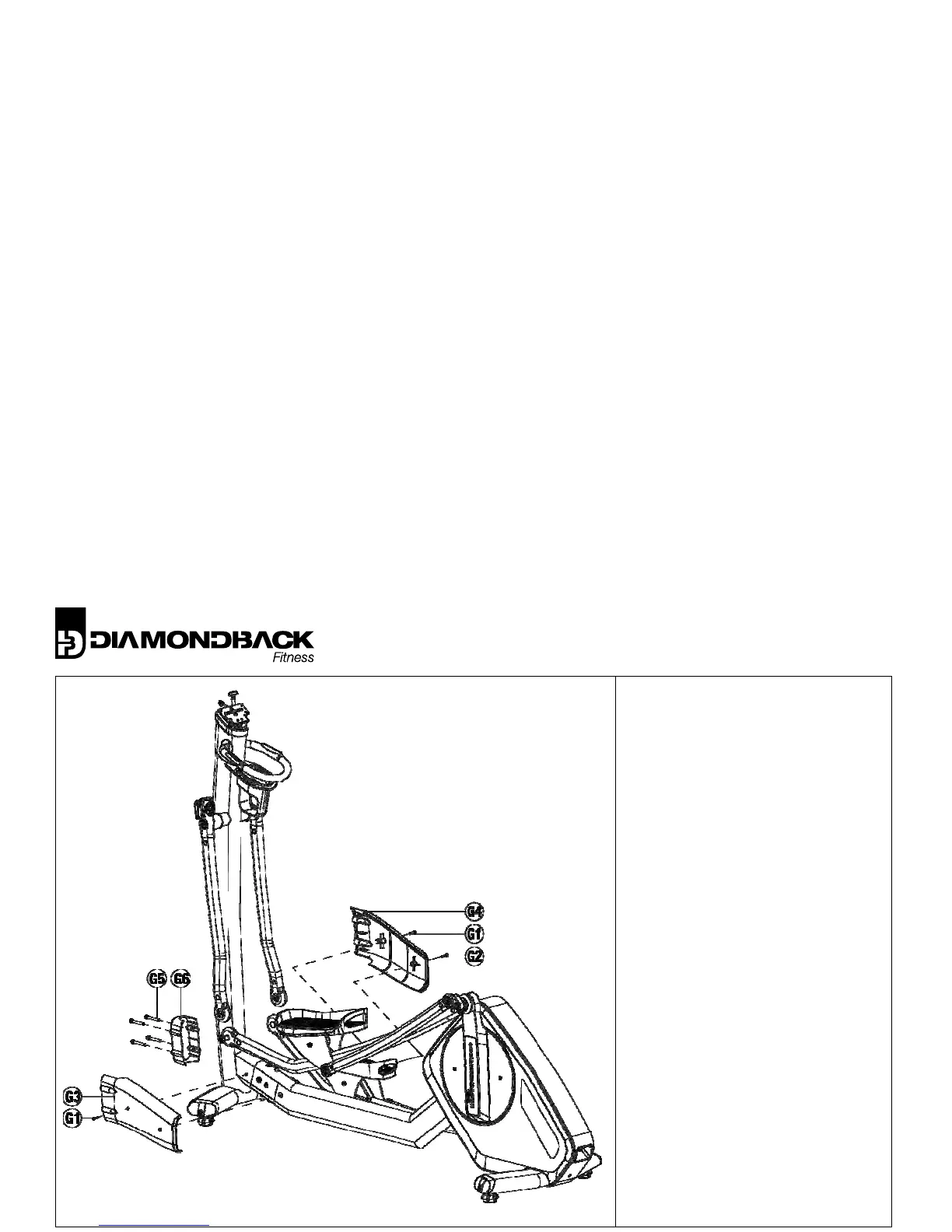

9. PartsG2,G3,G4,G5andG6will
arrivepre‐assembled.Removethe
four(4)Allenbolts(G5)fromthe
lowerconsolemastfrontcover(G6)
andsetaside.
10. RemoveAllenboltG2fromtheright
sideofthesidecase(G4)andset
aside.
11. Re
movethetwoAllenscrews(G1)
fromthesidesoftheframeandset
aside.
12. Gathertheleftandrightlowerconsole
mastcovers(G3&G4)andbring
togetherasaclamshelloverthe
consolemast/mainframeunion.Align
coverswiththemountingholesinthe
mainframeandlooselythreadthetwo
(2)Allenscrews(G1)intoplace.
13. LooselyinstallAllensc
rewG2through
theplasticcoverG4andintocoverG3.
14. Installthelowerconsolemastfront
cover(G6)bythreadingthefour(4)
Allenscrews(G5)throughthefaceand
intopartsG3an
dG4.Donotover‐
tighten.
15. TightenAllenscrewsG1andG2.Do
notover‐tightenandbeawareof
improperalignmentastheplastic
partscometogether.
