9
Cleaning and Maintenance
Disassemble the motorized floor nozzle

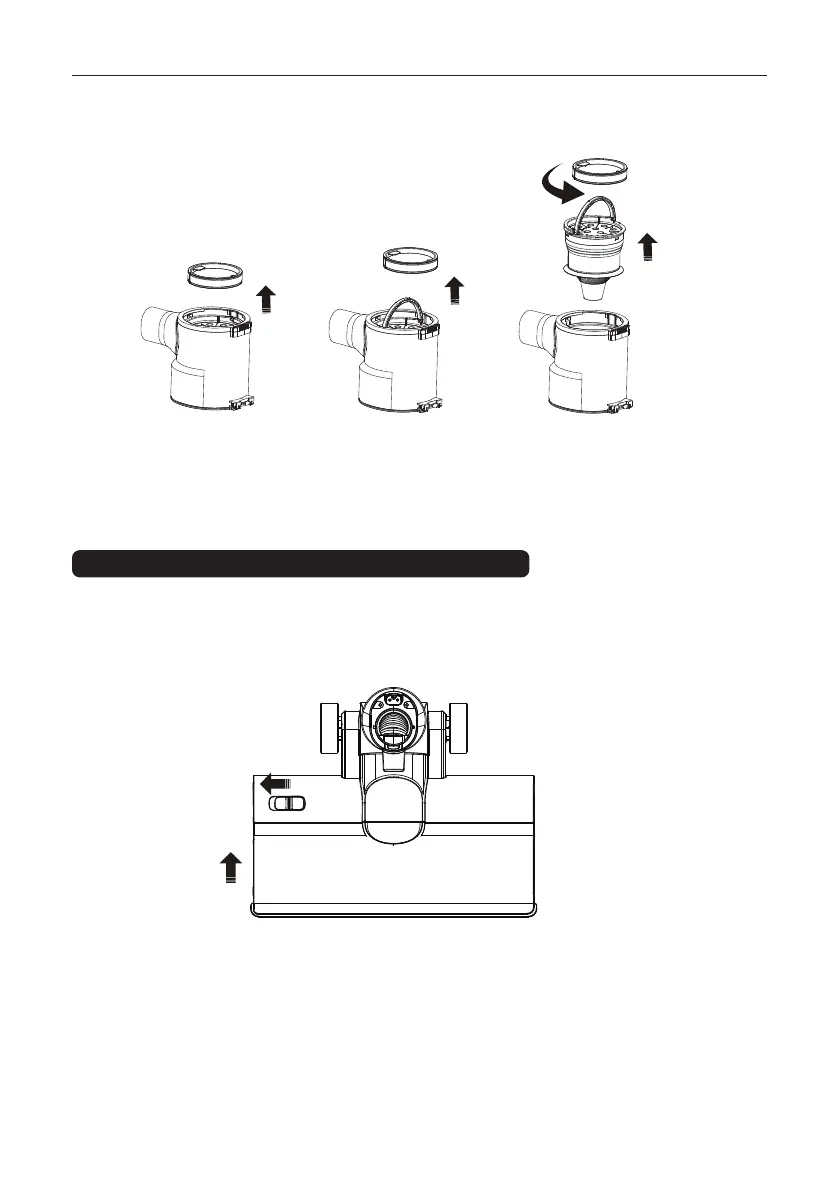

Step 3. Pick up the handle at the top of the cyclone filter, rotate counterclockwise to unlock the
cyclone filter, and pull it out.
1. Pull the red toggle on top of the motorized floor nozzle to the left, and fixing it on the left
position with one hand.
2. Lift the cover up to remove it with the other hand.
3. Lift up the white handle on the left side of the brush-roll to take it off.
Take out the
cotton filter.
Pick up the handle
at the top of the
cyclone filter.
Rotate counterclockwise
to unlock the cyclone
filter, and pull it out.
1. Turn left
2.Pull up
