OPERATOR’S MANUAL
PM100/PM100E Planter Monitor
11001-1426-200612
INTRODUCTION 3
INTRODUCTION
SYSTEM OVERVIEW
The PM100 and PM100E are seed flow monitoring systems that provide
indicators for row failure and low seed flow.
Features include:
• Monitoring of 1-16 rows (PM100) and 1-8 rows (PM100E)
• Automatic sensor detection
• LED row indicators
• Dual function row failure indication - allows all LED’s to blink while
planting and turn off to indicate row failure, or may be set to illuminate
to indicate row failure
• Adjustable failure threshold settings
• LED brightness adjustment

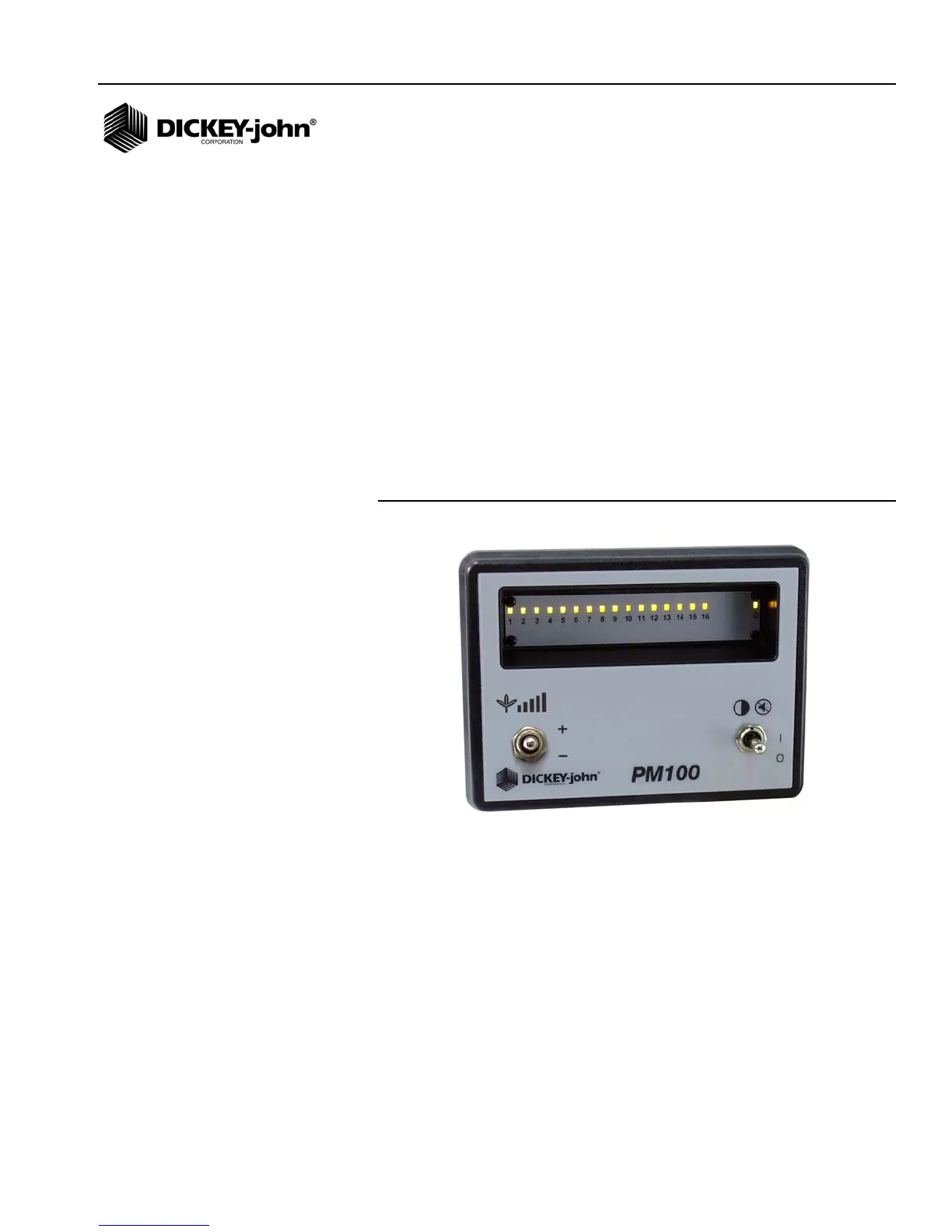

Figure 1
PM100/PM100E Planter Monitor
