• 8 •

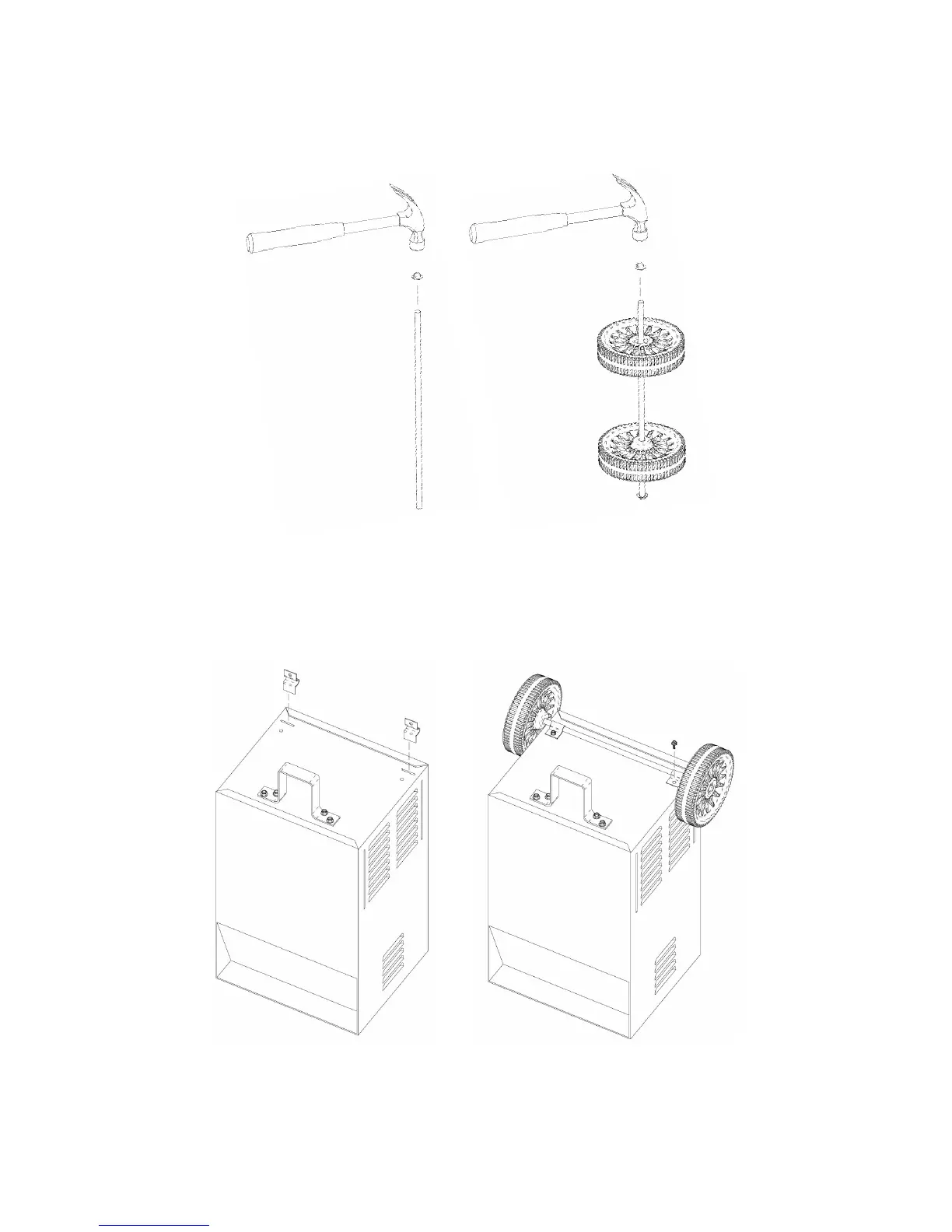

: Hold the axle upright on the oor or work
surface. Then, using a hammer, tap one of the axle caps onto the top end of
the axle. Be sure to tap the axle cap on straight. Slide both wheels onto the
axle with the recessed hubs facing out as shown. Install the second axle cap.
: Place one end of each bracket into the slot
on the bottom of the charger. Place the axle assembly under each bracket.
Attach the brackets using the two, 10-32 thread cutting screws provided.
Be careful not to drop the brackets inside of the charger case.
