3.3 MIDI Connections

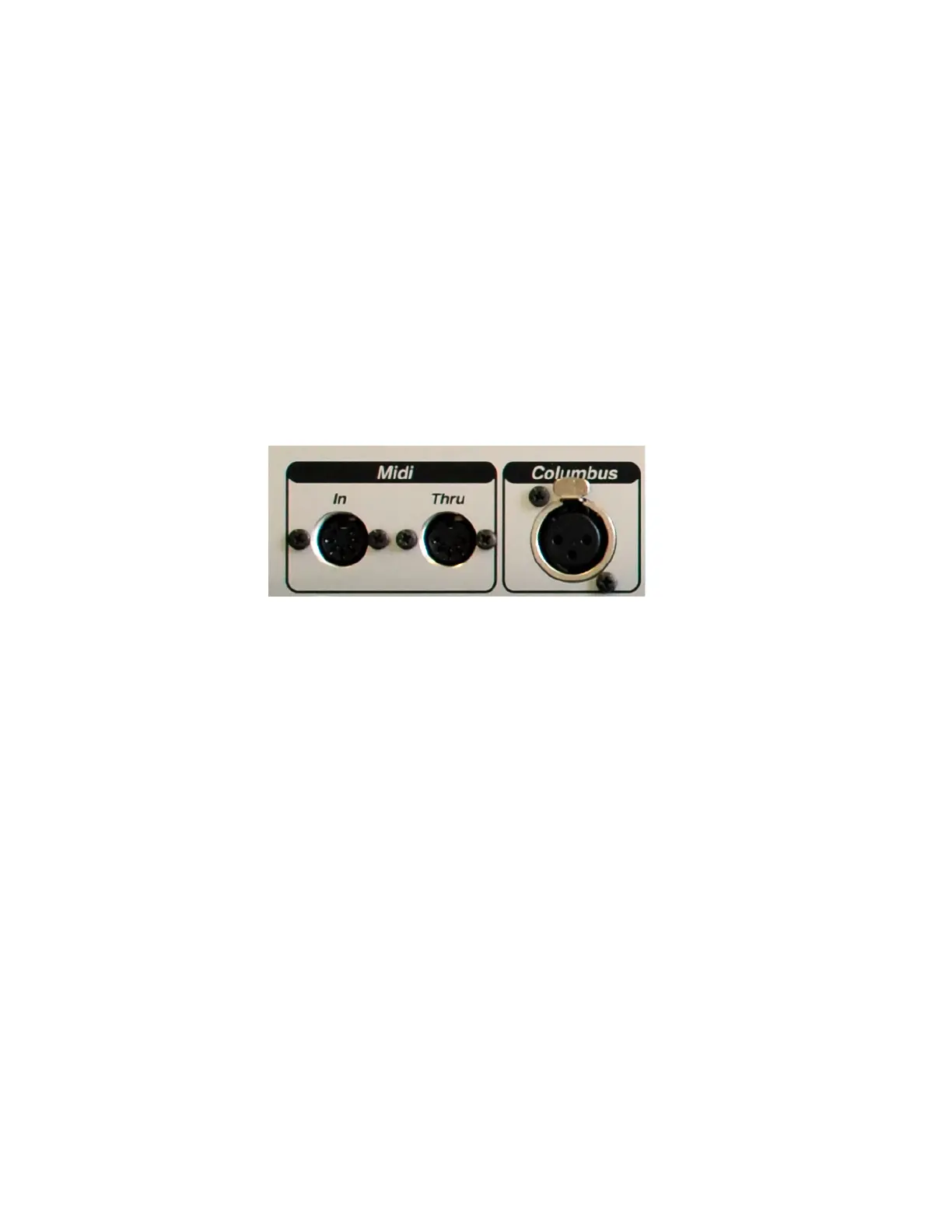

3.3.1 MIDI In
Midi in receives “program change” orders from commonly available midi pedals and control
systems. The Hagen is able to supply phantom power to your midi pedal via a 7-prong DIN midi
cable. This can help unclutter your stage system and rids the artist of these pesky power supplies.
Pin 1 and 6 is ground (-) Pin 3 and 7 is hot (+)
The voltage is 12 VDC, which is acceptable for 90% of all midi pedals. Maximum power usage of
the pedal cannot exceed 800mA (0.8A) Please observe proper polarity to avoid damage to the
MIDI pedal.
3.3.2 MIDI Thru
This jack routes the midi signal to other midi partners. MIDI data not addressed to the Hagen gets
looped through this jack.
See chapter 7 for MIDI programming instructions
