Chapter Five: Power Amplifier

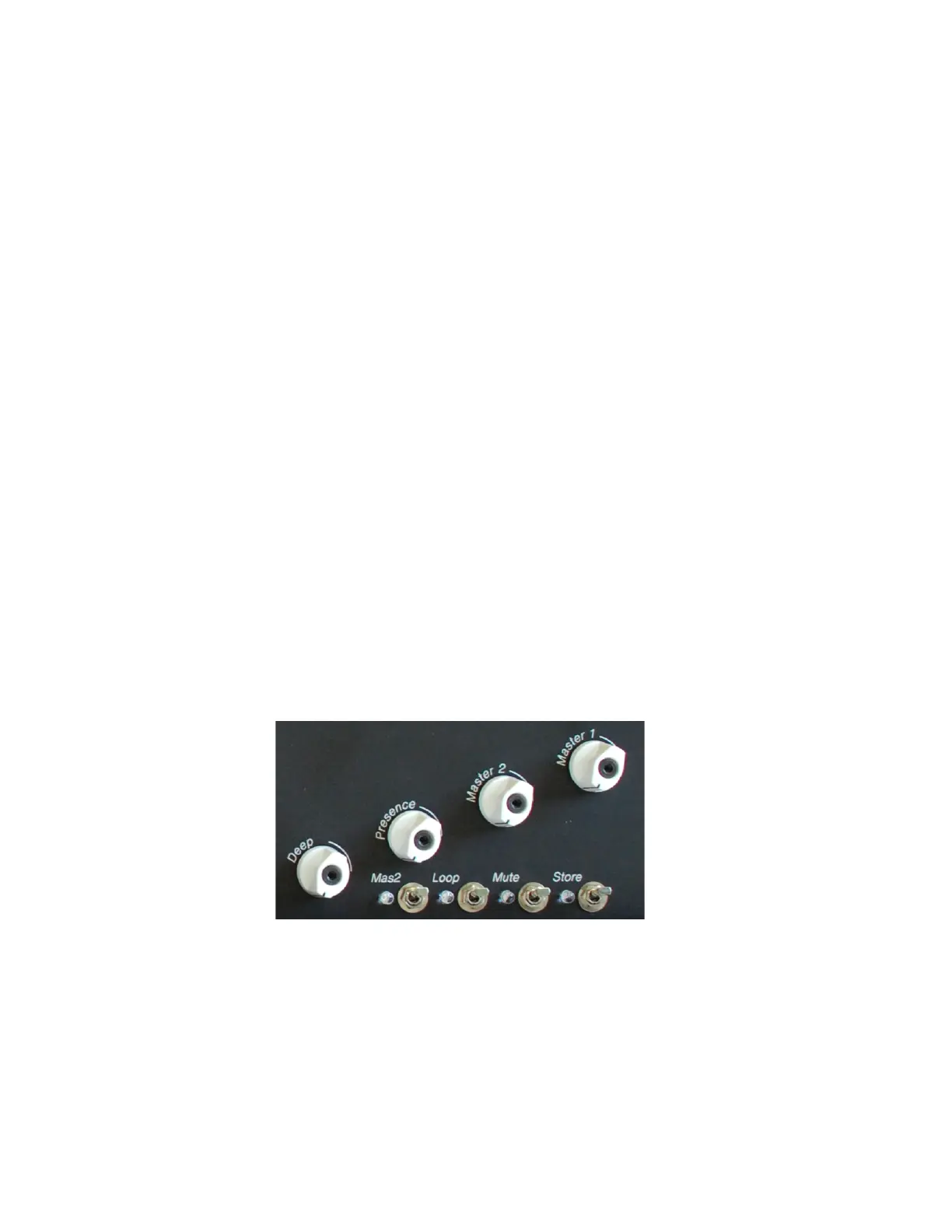

5.1 Tone and Volume of the Power Amplifier
5.1.1 Master Volume
As the name suggests, this controls the overall, global volume of the amplifier. For your enjoyment,
there is also a second programmable master volume control, which allows volume adjustments via
remote control while you are playing. Both controls are laid out so that even a low-performance
effects unit can be used and amplified in the loops.
With the switch “Mas2” you can select the second master volume (“Master 2”) for soloing and
adjust the loudness with it. Of course (as most functions of Hagen) it can be switched via midi.
5.1.2 Presence
This knob controls frequencies over 3KHz. Treble is produced and dispersed in a very small beam
from the speaker, so be sure to position yourself in the projection area of the speaker when making
adjustments.
5.1.3 Deep
The Deep control is an active bass control, contrary to conventional bass controls. It controls the
frequencies around 120Hz without influencing the overall dynamic range of the power amplifier.
Diezel Co. is not responsible for disintegrating speaker cabinets.
