5. Install the 1 in. threaded adapter by
pushing it onto the actuator stem
and making sure the notch on the
adapter lines up with the notch on
the stem of the actuator
(see Figure D).
6. Spread the retainer clip with your
thumbs and push the retainer into
the adapter until it clicks
(see Figure E).
7. Install the 1 in. seat washer
assembly as shown. Insert the seat
washer screw into the bottom of the
actuator stem and tighten turning
clockwise (see Figure F).
NOTE: Do not over-tighten.

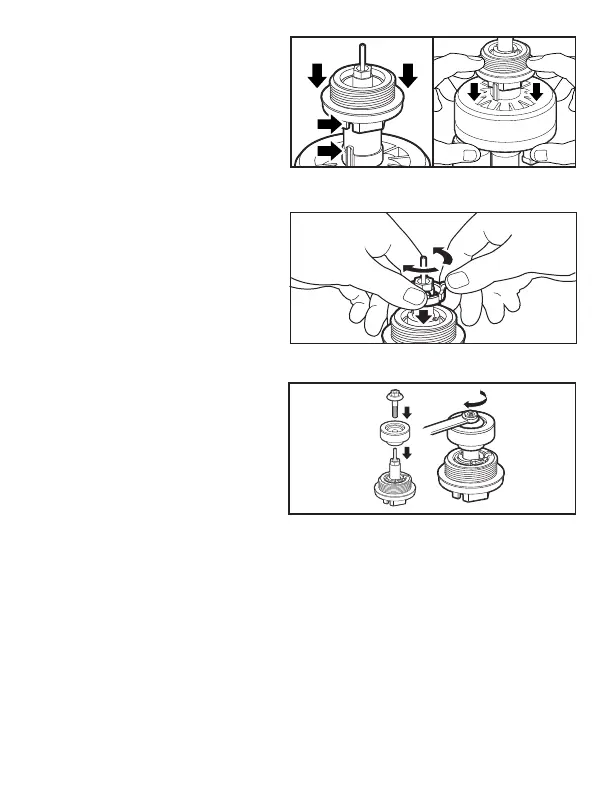

FIGURE D
FIGURE F
FIGURE E
