5. Turn actuator flow control knob clockwise until it stops to shut off flow
(Figure D).
6. Turn on main water supply.
7. Activate the solenoid through the controller, a click will be heard indicating the
valve is open. (The manual symbol will appear on the display.)
8. Turn the actuator flow control knob counter clockwise to allow flow and check
the system to make sure that the sprinklers or the drip system is working
properly (Figure E).
9. De-activate the solenoid through the controller, a faint click will be heard and the
valve should close. (The manual symbol will disappear and water flow will stop).
If flow continues, turn flow knob clockwise, one full turn at the time until flow is
completely shut off.
10. Repeat steps 7 and 9 and make sure that flow is turned on and off.
Note: Turn flow control knob clockwise to decrease flow, counter-clockwise to
increase flow. For low-flow drip systems below 60 gallons per hour, flow control
knob should be turned no more than 1 to 3 turns up
(counter-clockwise) from the fully closed position.
11. The unit is now ready to be programmed.
12

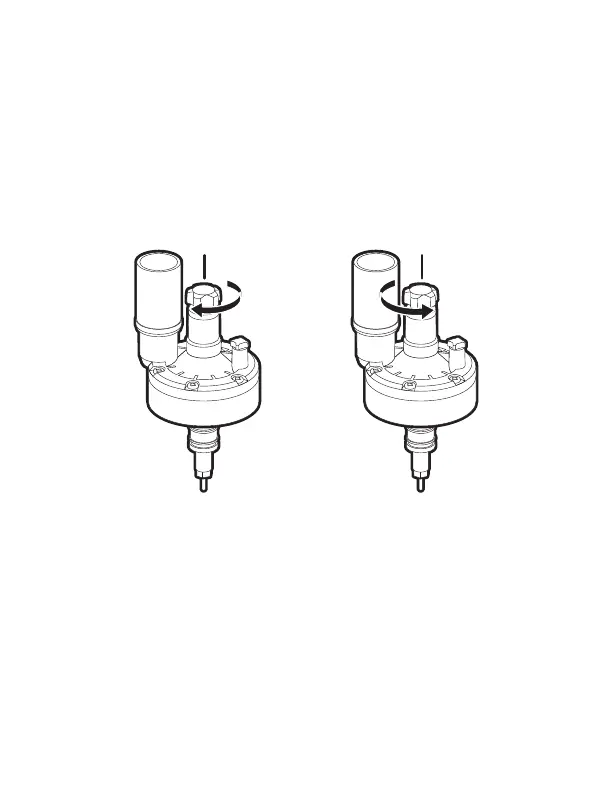

FIGURE D FIGURE E
FLOW CONTROL KNOB FLOW CONTROL KNOB
