29

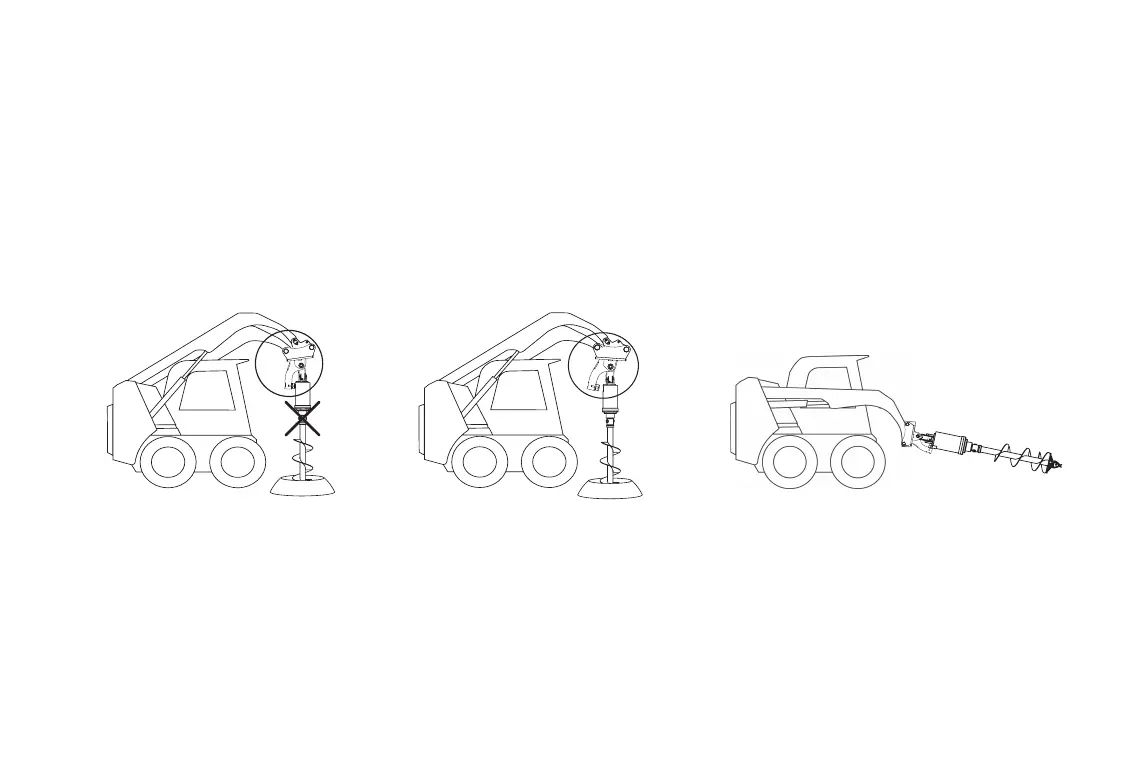

Do not drill with the cradle
resting against the drive unit
(B)-This will damage your Drive
unit & Auger.
The correct drilling operation
is with the cradle positioned
up and away from the drive
unit allowing the drive and
Auger to swing freely left,
right, forward & back (C).
For manoeuvring around the job
site, the cradle is positioned so
the Drive unit is resting against the
cradle arm & the loader arms are
not obstructing visibility
(D)
.
11 Operating Instructions
For Excavators - Apply the greatest amount of down force from the main boom. Be aware that the boom moves
in an arc and to maintain a plumb drilling position. You will need to compensate for this movement by adjusting
the dipper arm or moving your machine backwards or forwards to ensure you are drilling straight. You must take
extreme care when doing this to prevent the auger or screw pile from bending or pulling ights against the inside
of the hole.
For All Other Machines - Ensure the vertical position is maintained when drilling.
(B) (C)
(D)
