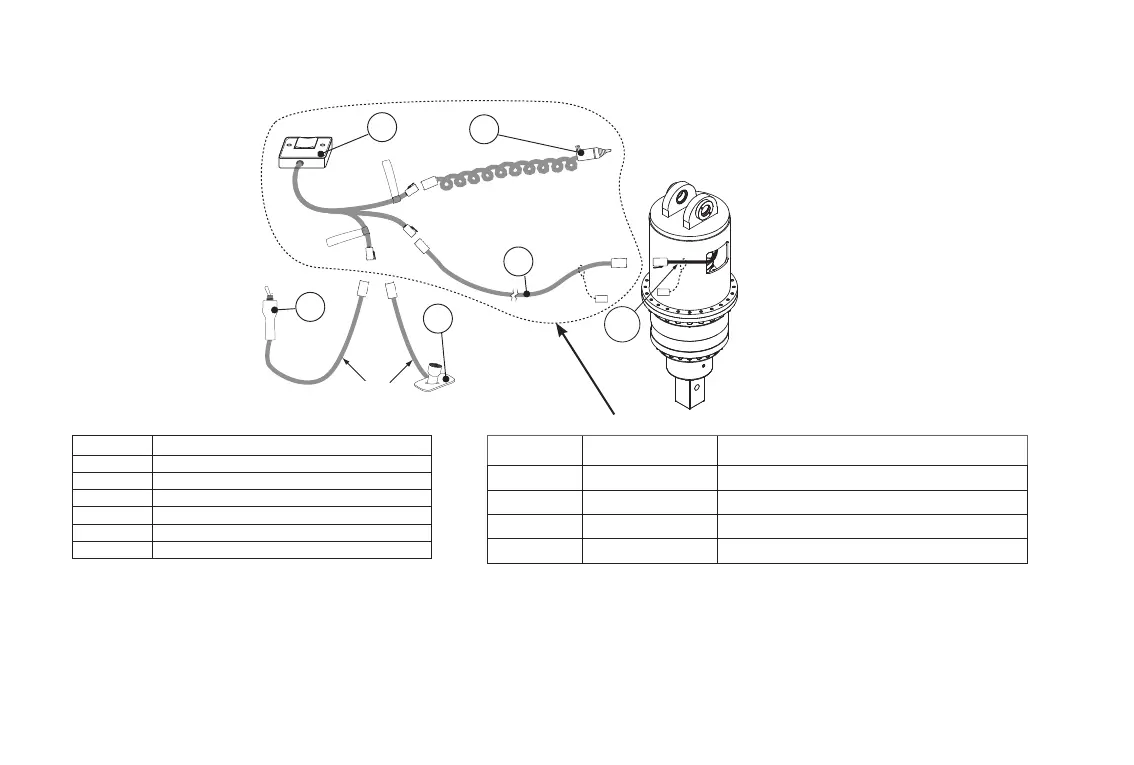

(ii) Use of Cigarette Lighter power lead
ITEM DESCRIPTION
A Controller 2 Speed
B 12V/24V Power Lead
C Remote Toggle Switch (OPTIONAL)
D Remote Floor Mounted Switch (OPTIONAL)
E Extension Harness - Choose length
F 3m (10ft) Harness - Standard with 2 Speed Drive
• If the Planetary drive unit is tted with
24V Solenoid coil, plug the cigarette
lighter plug into 24V DC Socket.
• If the Planetary drive unit is tted with
a 12V solenoid coil, plug the cigarette
lighter plug into 12V DC socket.
• Do not connect A 12V powered drive
unit to a 24V supply.
Power lead (B) TC- 000012
comes in as included in
Digga’s optional Plug and
Go 2 Speed Controller Kit.
This kit is recommended
for telehandlers, backhoes
and excavators as well as
skid steer loaders (without
a service plug). 4 kits are
available with 4 di󰀨erent
length extension harnesses.
KIT PART
NUMBER
BOOM EXTENSION
HARNESS LENGTH
TO SUIT MACHINE
(SUGGESTED)
DM-000037 3M (10FT) UP TO 5T EXCAVATORS
DM-000034 6M (20FT) 5T TO 8T EXCAVATORS & SKID STEER LOADERS
DM-000038 12M (40FT) 8T TO 16T EXCAVATORS
DM-000039 15M (50FT) 18T + EXCAVATORS
Plug 'n Go Kits
A
B
E
D
C
OR
REMOTE
SUPPLY
F
12 2 Speed Installations-Electrics
Variable Displacement Drives (Powered by Linde HMR hydraulic motors)
The Linde HMR hydraulic motor is a pressure regulating motor and has variable displacement. This motor does
not use any electrics to change speed.
Single Speed Drives (EATON 2K and 6K series motors)
These motors do not require electrics.
