Digga PDD - Page 63

63
C

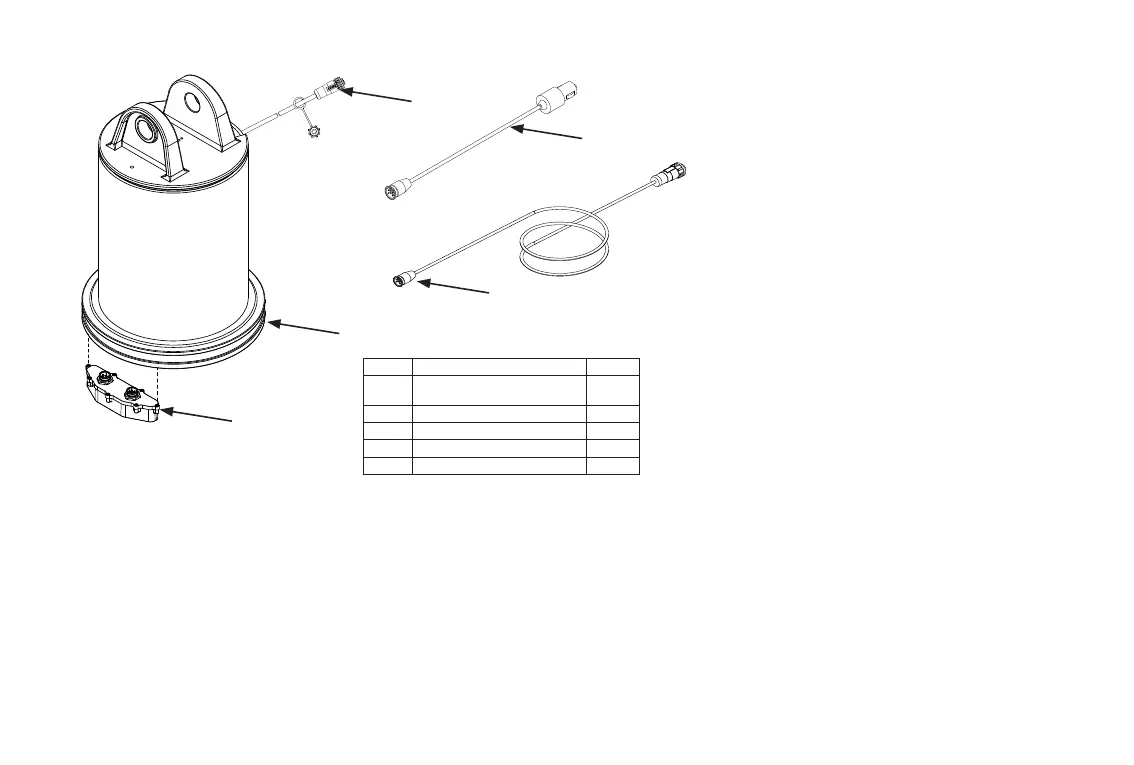

COMPONENTS LIST
REF HALO ITEM QTY
A
HOOD FITTED WITH
HALO LIGHT RING
1
B
HALO HOOD BOX
1
C
3M CABLE
1
D
CIGARETTE LIGHTER PLUG
1
E
LEAD IN CABLE
1
Halo Cab 12V Cigarette Lighter 200mm Cable EC-001295
D
A
B
E
SERVICING AND DISASSEMBLY NOTES
When disassembling any part of the Halo, please ensure all parts are reassembled in the same order and orientation
to avoid any problems. When lowering the hood onto the drive, make sure no cables are crushed in the process. Once
reinstalled, make sure no cables exiting the hood can be crushed. The Power cable needs to have 400-500mm slack
inside the hood to ensure it does not strain on the hood box connector. Make sure a cable tie is used to secure this length
of slack in the Power cable inside the hood by tying the power cable rmly to one of the hydraulic hoses (with the slack
inside the hood). The power cable should then be re-wrapped in the black spiral wrap to protect from damage in use.
