DWL-3000XY & DWL-3500XY Instruction Manual
4

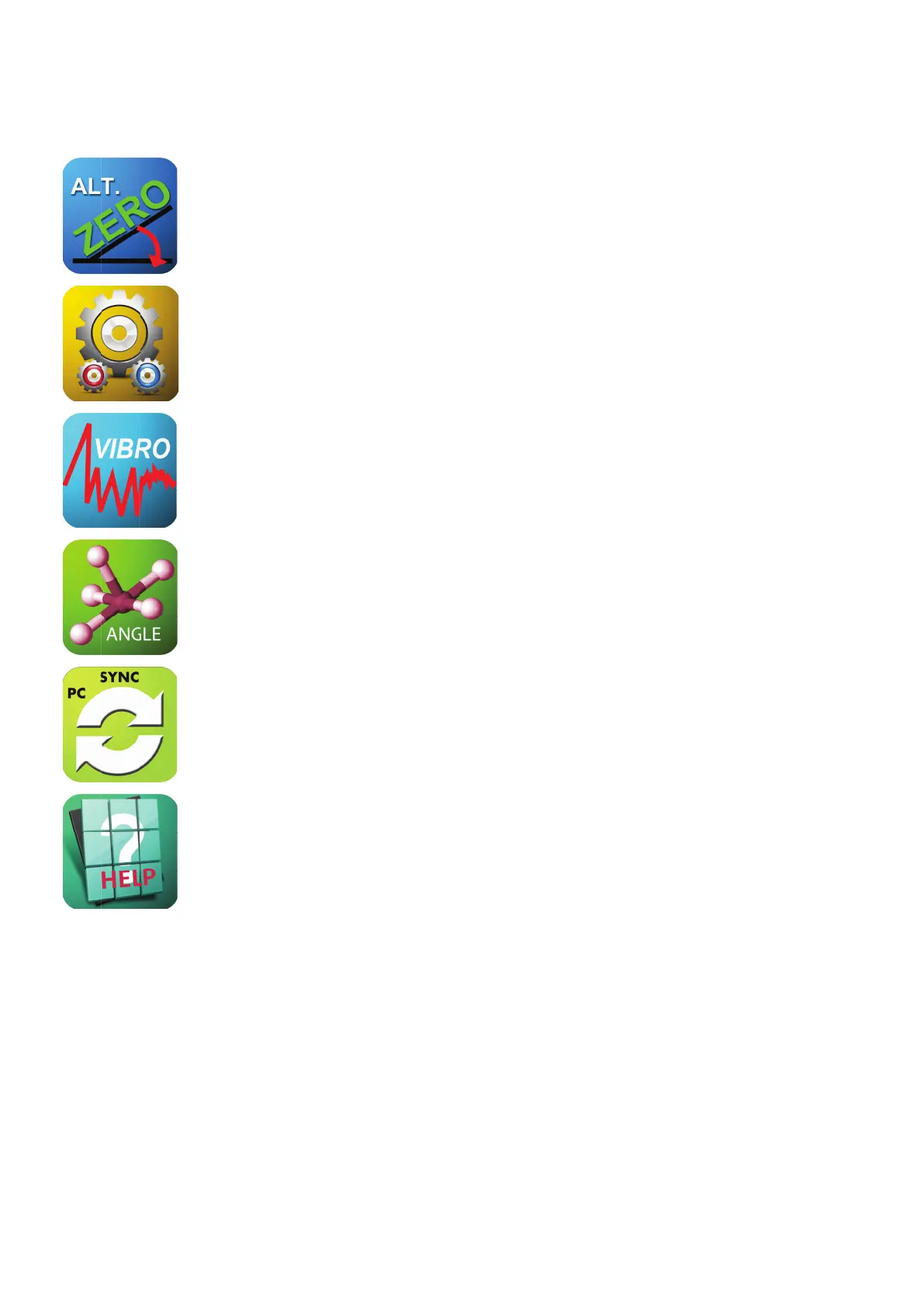

ALTERNATE ZERO
Enable user to measure relative angles at a common plane with
respect to a reference angle. Set any angle to 0.00° as a reference.
SETTING MENU
Enable user to modify various parameters of the device.
VIBRO METER
Enables user to obtain real-time continuous vibration measurements
displayed in line graph.
*This feature is only applicable to Bluetooth device.
ANGLE METER
Enables user to obtain real-time continuous angle measurements
displayed in line graph.
*This feature is only applicable to Bluetooth device.
SYNC MENU
Enables user to select the connectivity (USB/Bluetooth) with a
computer installed with PC Sync Software.
*This feature is only applicable to Bluetooth device.
HELP MENU
Enable user to have a quick and easy reference on Device’s button
conguration.
For Bluetooth device, the HELP icon is represented as “?” instead.
