DWL-3000XY & DWL-3500XY Instruction Manual
11
2.7. Angle Meter Mode
Place the digital level on the surface to be measured.
Please ensure the contact surfaces of the device and measuring plane are clean and free from
dust particles.

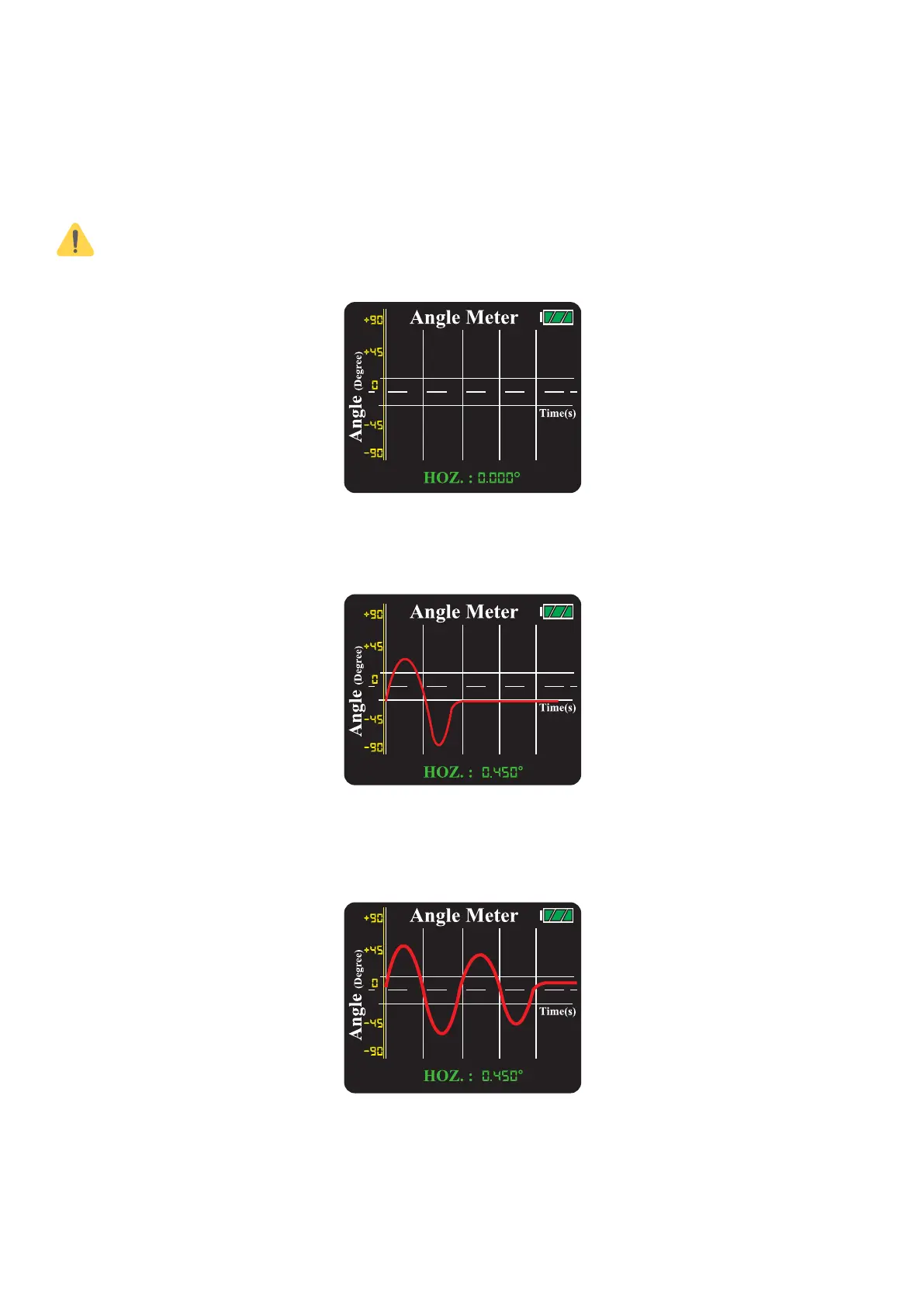

Figure 17. Operation of angle meter display
The Angle Meter displays real-time continuous angle measurements in line graph.
Figure 18. Freeze display of angle meter mode
User may “freeze” the screen by pressing the HOLD button. The HOLD icon pops up to indi-
cate the screen is paused. To resume operation, press the hold button once.
Figure 19. Angle meter mode
