SM5100 INTERFACE

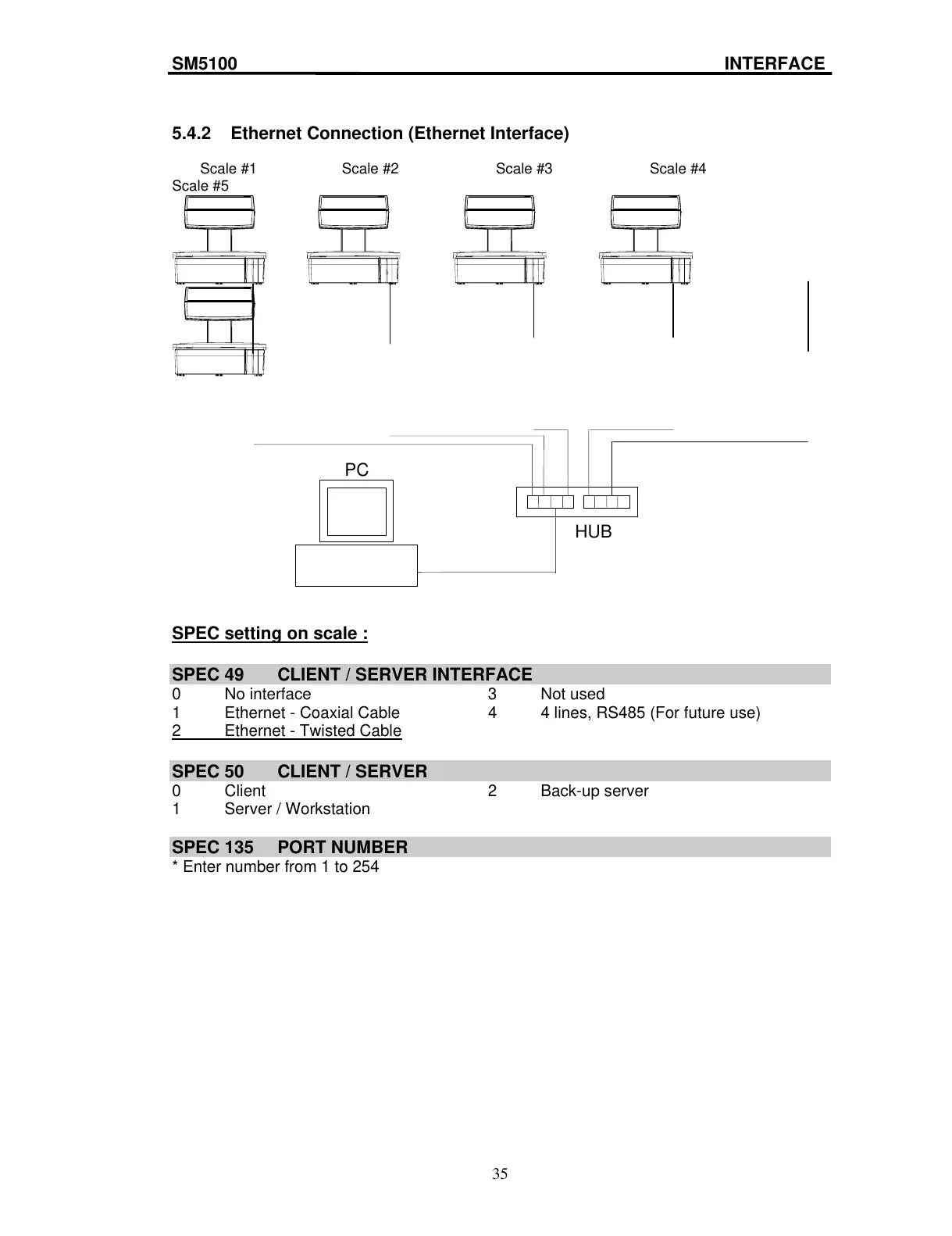

5.4.2 Ethernet Connection (Ethernet Interface)
Scale #1 Scale #2 Scale #3 Scale #4
Scale #5
PC
HUB
SPEC setting on scale :
SPEC 49 CLIENT / SERVER INTERFACE
0 No interface 3 Not used
1 Ethernet - Coaxial Cable 4 4 lines, RS485 (For future use)
2 Ethernet - Twisted Cable
SPEC 50 CLIENT / SERVER
0 Client 2 Back-up server
1 Server / Workstation
SPEC 135 PORT NUMBER
* Enter number from 1 to 254
35
