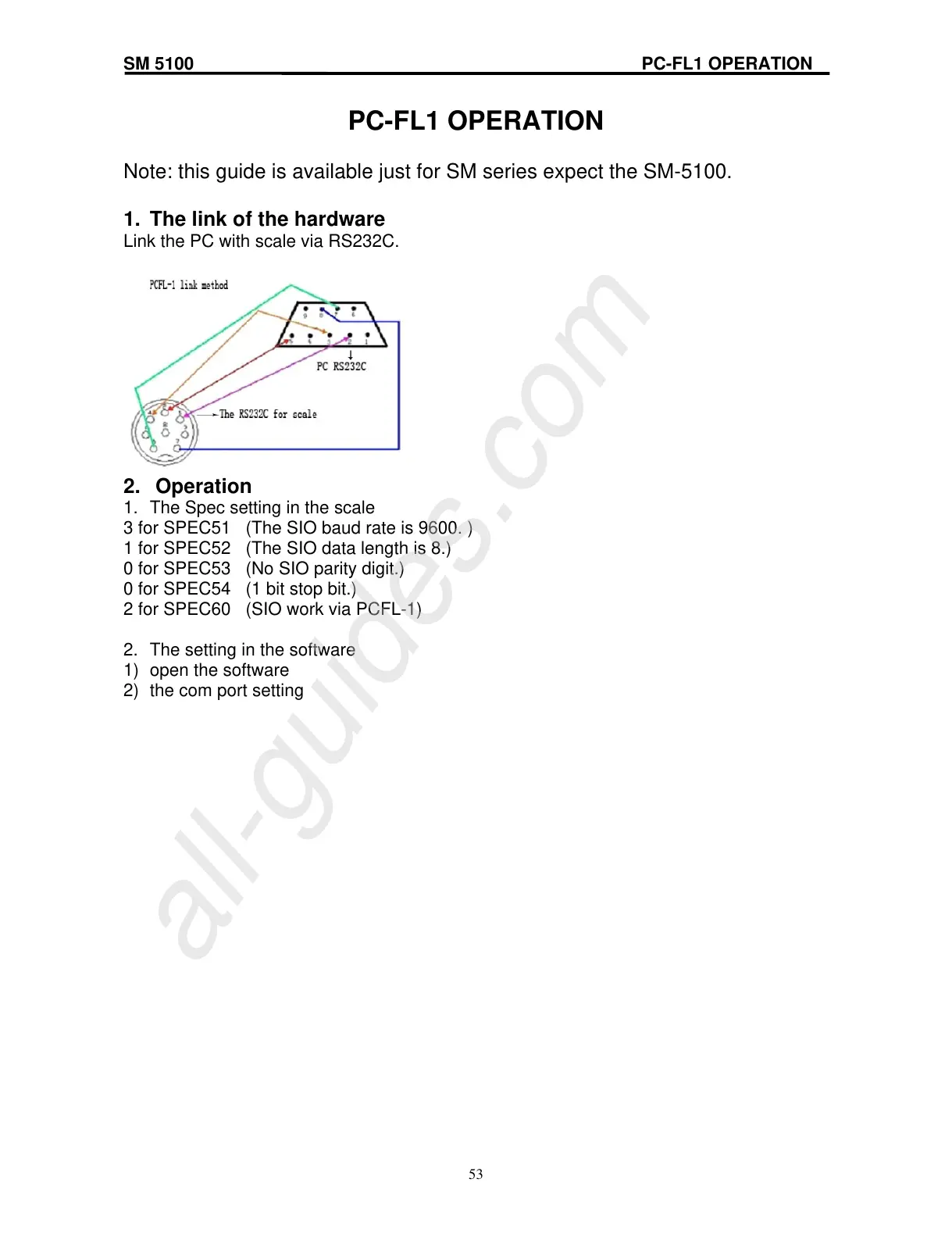

SM 5100 PC-FL1 OPERATION
PC-FL1 OPERATION
Note: this guide is available just for SM series expect the SM-5100.
1. The link of the hardware
Link the PC with scale via RS232C.
2. Operation
1. The Spec setting in the scale
3 for SPEC51 (The SIO baud rate is 9600. )
1 for SPEC52 (The SIO data length is 8.)
0 for SPEC53 (No SIO parity digit.)
0 for SPEC54 (1 bit stop bit.)
2 for SPEC60 (SIO work via PCFL-1)
2. The setting in the software
1) open the software
2) the com port setting
53
