4.2 Print Area, Print Position and Print Angles
M o d e l S M - 5 3 00 O p e r a t i o n M a n u a l | 129
4.2.3 Print Angles
Print angle of each Print Item data can be selected from 4 different angles, 0
0
, 90
0
, 180
0
and
270
0
.

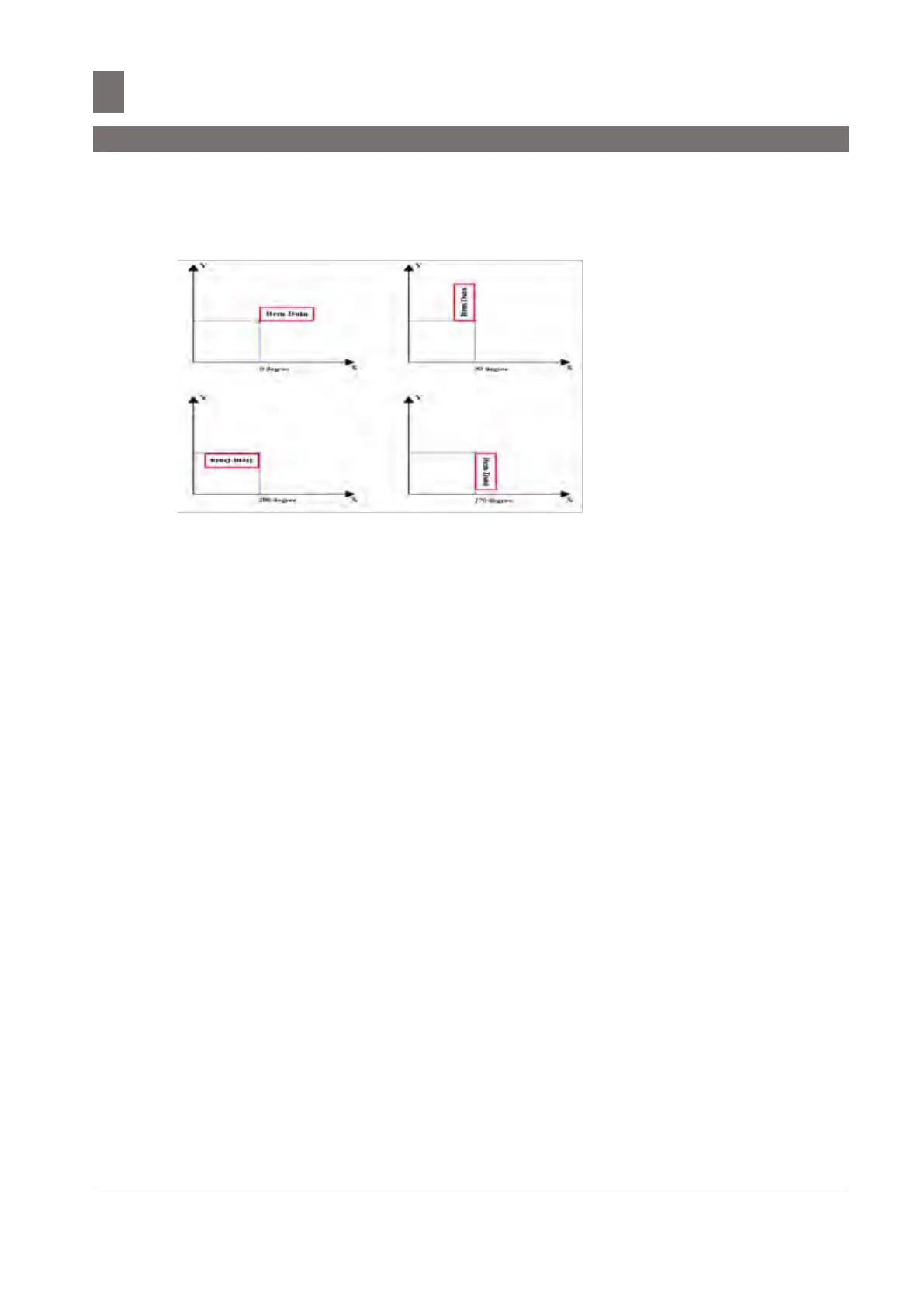

The drawing below shows the direction the item data is facing at the different angles.
