4.2 Print Area, Print Position and Print Angles
M o d e l S M - 5 3 00 O p e r a t i o n M a n u a l | 128
4.2 Print Area, Print Position and Print Angles
All changeable item data should be programmed 10mm below form the top of the label. The top
10mm of the label should be used for invariable data such as Shop Name, since this area is printed
when issuing the last label. Please do not program any item closer than 1mm to the edges of the
label.
The print position of each item is determined by setting the interval from point (X = 0, Y = 0) to the
base position of the data position (
entered by mm.
ï‚· 1 dot (horizontal) = 0.135mm
ï‚· 1 dot (vertical) = 0.155mm
4.2.1 Print Area

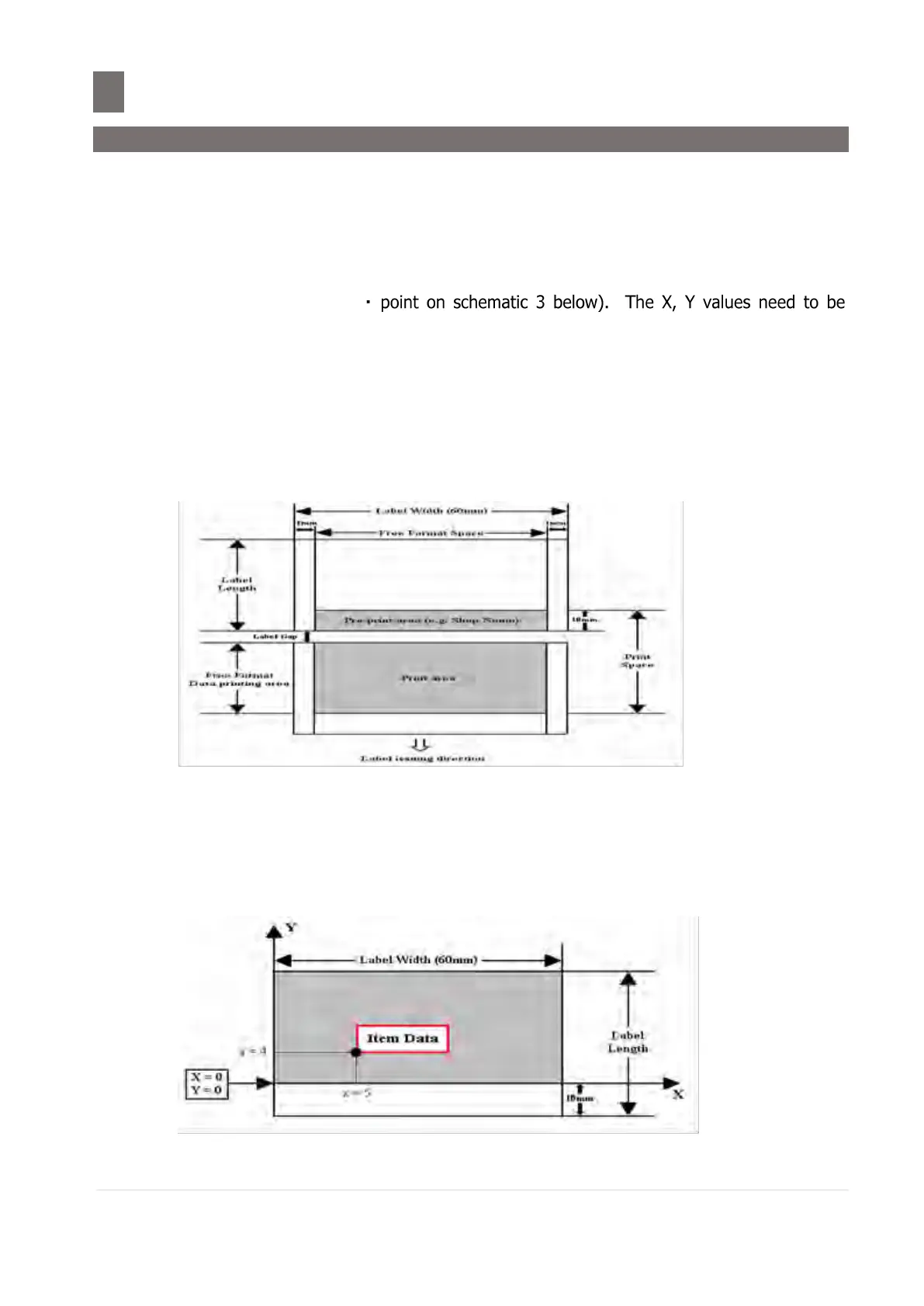

The drawing shows two labels. The gray area is the area that will be printed in one print
operation. The top 10mm of the label should be reserved for Item Data that is invariable,
such as Shop Name. You should not position Item data closer than 1mm to the edges of the
label.
4.2.2 Print Position
The printing position of each item data is decided by setting the distance from 0 point (X = 0,
Y = 0) to the base position (X value, Y value).
Example: (measurement is in mm)
X = 5 Y = 4
The Item data is first moved 5mm to the right, then 4mm up.
