Print Format
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
4.4 Programming of Free Format
M o d e l S M - 5 3 00 O p e r a t i o n M a n u a l | 138

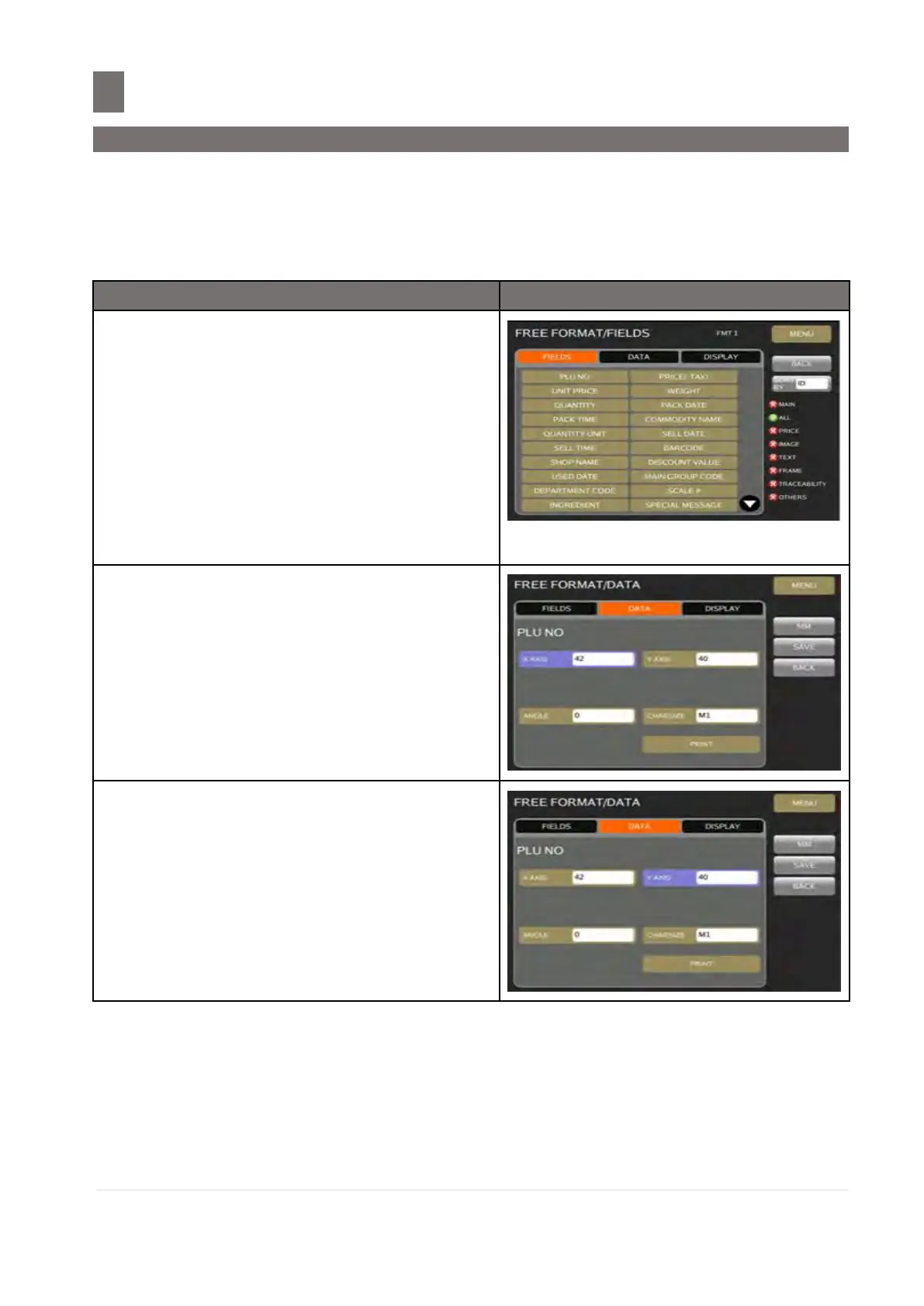

4.4.1.1 Type 1 Data Setting
The Type 1 data setting is the numeric and fixed data. The position of Type 1 item data is
decided by X, Y values, character size, angle and status. 10 different character sizes are
available. The size of the print area varies according to the character size selected.
Example: Procedure to set PLU NO.
OPERATION
DISPLAY
1.
In Item Free Format mode, under [FIELDS]
folder, select the item data. (e.g. PLU NO)
Note:
1. Touch [ARROW DOWN] or [ARROW
UP] for more selection.
2. Touch [SORT BY NAME] or [SORT BY
ID] for more selection
3. To save data, touch [DISPLAY] folder
and touch [SAVE] key.
4. Touch Option Button to be short cut to
shown desired FIELDS.
2.
Touch [X AXIS] key and enter the value by
keypad. (e.g. 42)
3.
Touch [Y AXIS] key and enter the value by
keypad. (e.g. 40)
