DQ & MQ-Rack User Guide 1.7 Rack Connections with MADI
22
Shared Rack

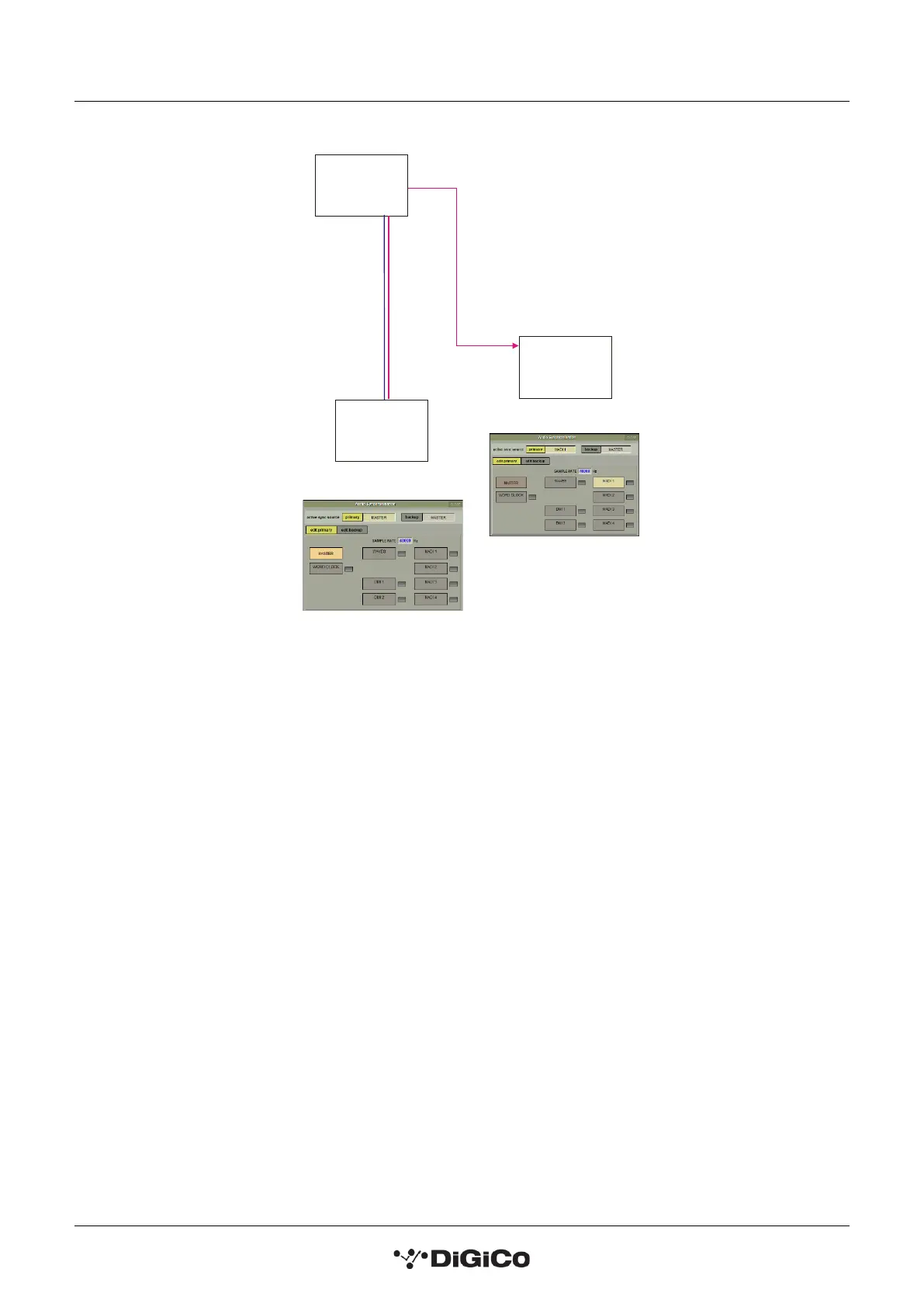

FOH & MONITORS WITH SHARED RACK at 48KHz USING MADI
MONITORS
Audio Sync = MADI IN
Uni-Directional Gain Tracking
FOH has control of the Analogue Gains
and Monitors can track this
AUX MADI
OUT
MADI PORT
IN/OUT
MADI
PORT IN
MAIN MADI
IN/OUT
Connection is 2 x BNC cables
FOH
Audio Sync = MASTER
Console 1
Console 2
Connection is 1 x BNC cables
