Chapter 2: 96i I/O Hardware Overview 5
chapter 2
96i I/O Hardware Overview
This chapter describes the front and back panel features of the 96i I/O.
The 96i I/O Front Panel
Power Switch and LED Ring
This button turns the 96i I/O on and off.
The LED ring around the power button lights
green when the unit has powered up success-
fully and is connected to an active Pro Tools|HD
system. If the LED ring is orange, the unit has
power, but the computer it is connected to is
shut down.
Sample Rate LEDs
These LEDs display the current Pro Tools sample
rate: 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz.
(The 96i I/O goes offline whenever the current
Pro Tools sample rate is 176.4 kHz or 192 kHz.)
See the HD Setup Guide for complete system installation and configuration instructions. If you are add-
ing the 96i I/O to an existing system, see the
Expanded Systems Guide.

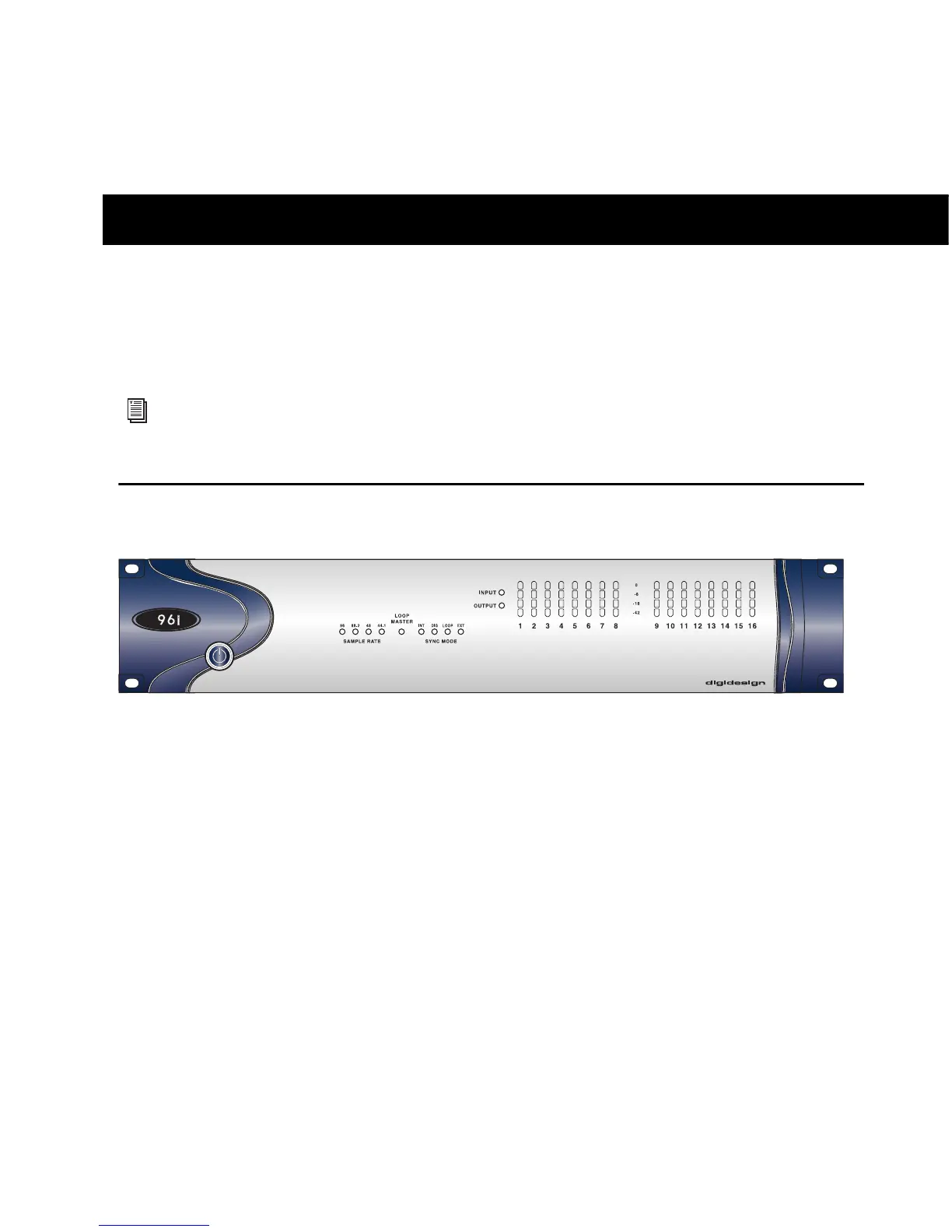

Figure 1. 96i I/O front panel
