Digikeijs DR 4088 series User Manual

DR4088CS / GND / OPTO 2021-08-11
P 5
www.digikeijs.com
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz

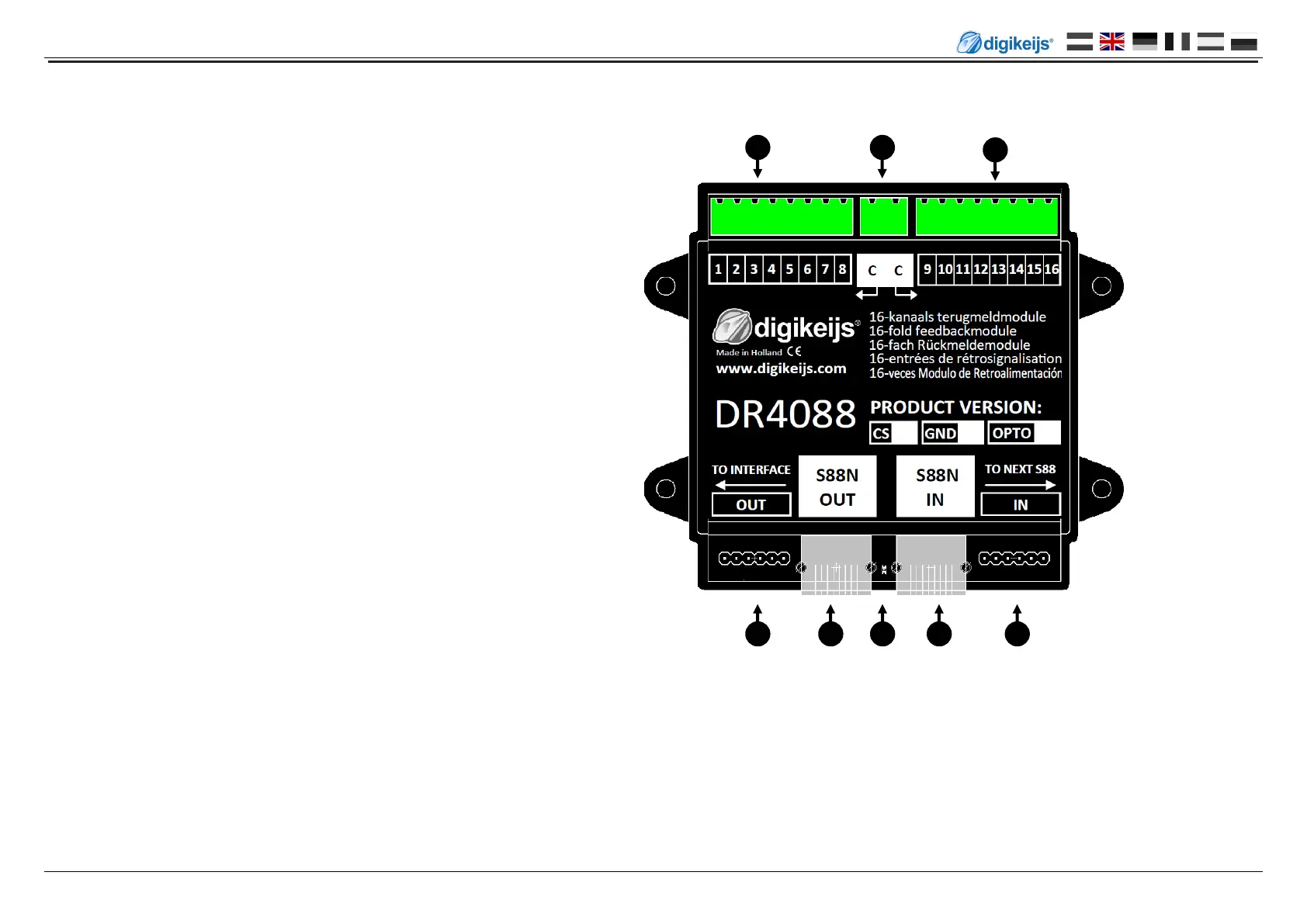

2.3 Hardware Overview
1 Connecon feedback 1 to 8
2 Common connecon "C" for the right or le detector group.
3 Connecon feedback 9 bis16
4 S88® OUT connecon
(connue to the next DR4088xx)
5 S88® OUT connecon
(to central or previous DR4088xx)
6 red LED
(ashing during load or acvity at S88N connecon)
7 S88N® IN connector (standard RJ45 patch cable).
(connue to next DR4088xx)
8 S88® IN connecon
(connue to the next DR4088xx)
1 2
3
4 5 6 7 8
