4.1 Feedback modules DR4088RB-CS; 2-wire track

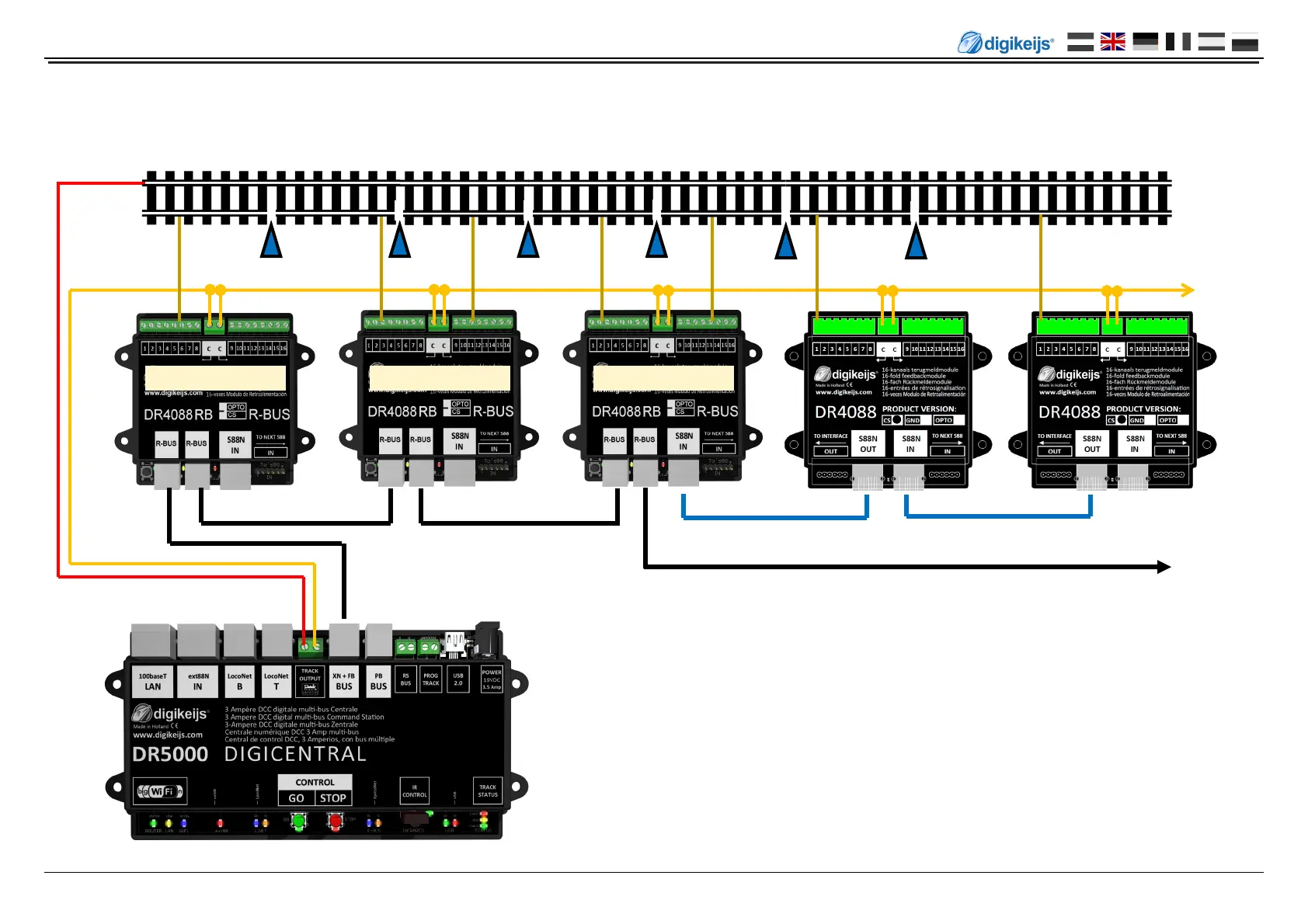

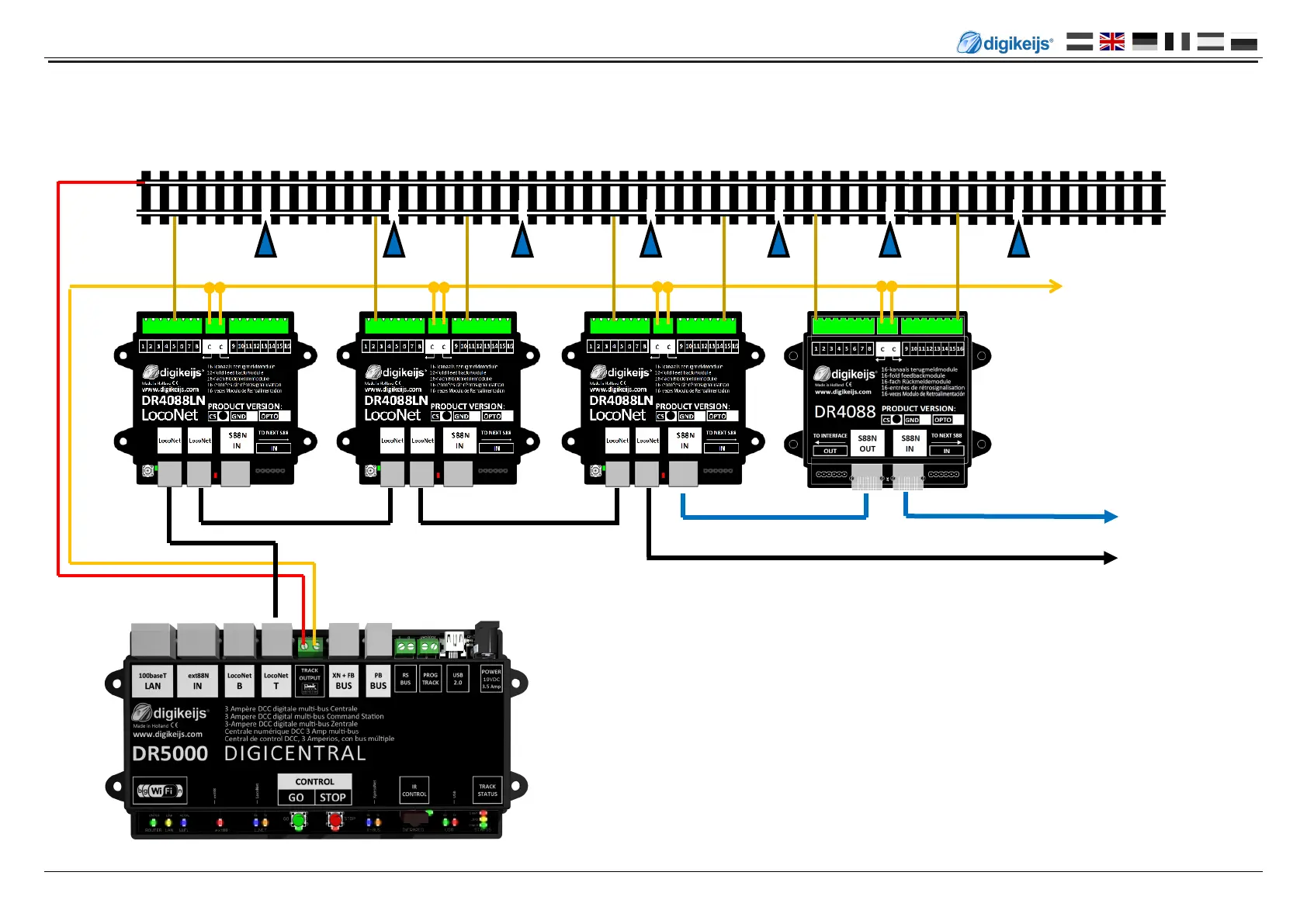

DR5000 in conjuncon with R-Bus® feedback modules (DR4088RB-CS)
In this example the feedback modules DR4088RB-CS are used.
These feedback modules are connected to the DR5000 central unit via R-Bus®. You can con-
nect a maximum of 10 modules with 16 inputs each to the R-Bus® of the DR5000. A maxi-
mum of 160 feedback modules can thus be connected.
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz
Further R-Bus®
components
Moduladresse 1-2 Moduladresse 5-10 Moduladresse 3-4
