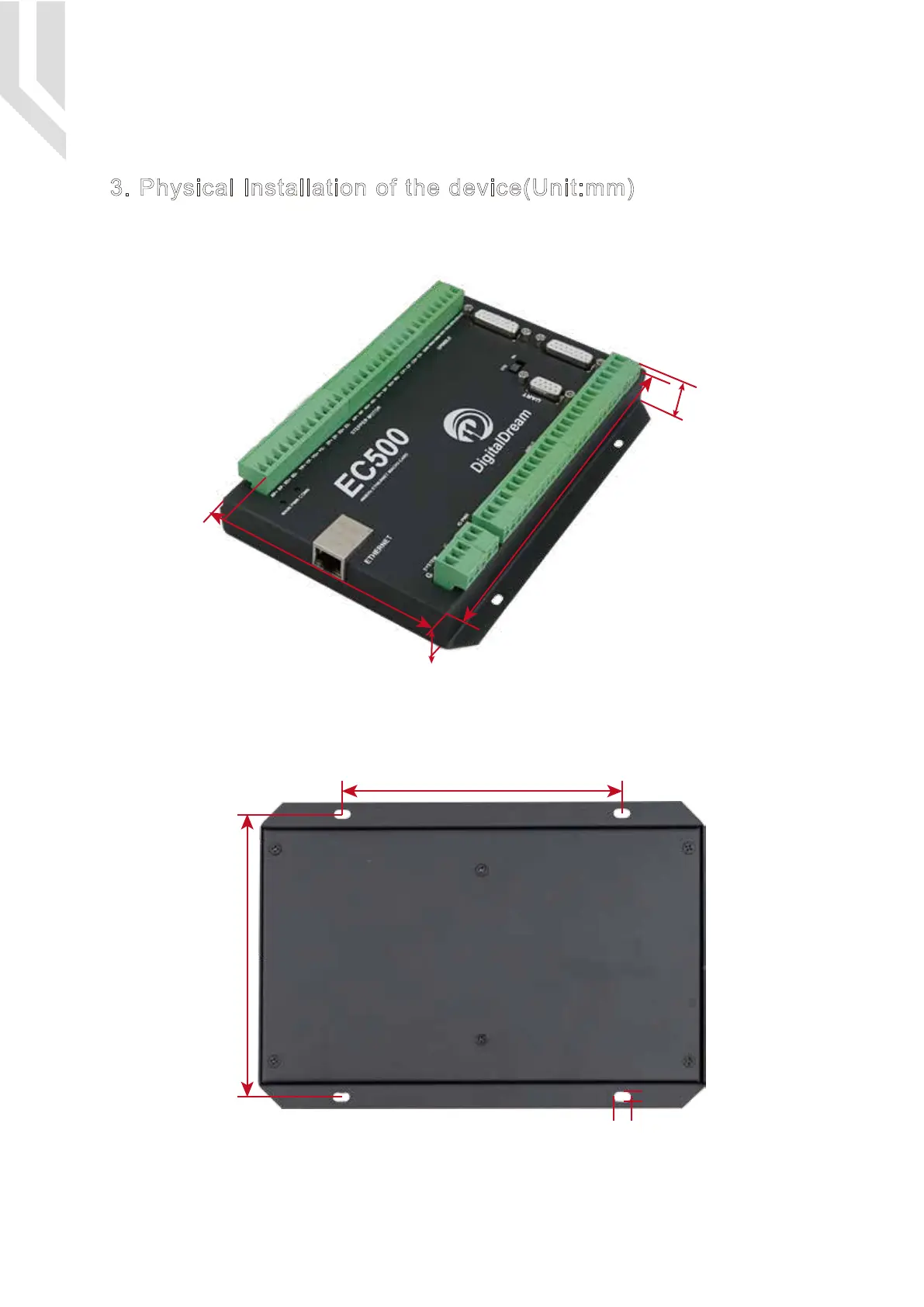

3. Physical Installation of the device(Unit:mm)
The EC500 motion controller is with the sealed shell structure,there are 4pcs mounting holes around the
controller.We can fix 4pcs 4mm diameter holes at the cabinet,and install the controller into the cabinet.
Picture 3-1 EC500 Front Appearance and size
Picture 3-2 EC500 Installation Dimensions
190 mm
32 mm
113 mm
21 mm
7 mm
4 mm
116 mm
119 mm
Page -2Digital Dream Mach3 Motion Controller EC500 User’s Manual
