Connection using a Pre-amplifier or Integrated Amplifier
The connection diagram shows a typical pre-amplifer connected to the DRR-103. Use the digital
audio output with the provided optical (Toslink) cable or use the analog audio output with stereo RCA
cables (not supplied). Alternatively you can also use the coaxial output for digital audio. Ensure that
power to both the DRR-103 and Pre-amplifier is OFF before any connections are made.

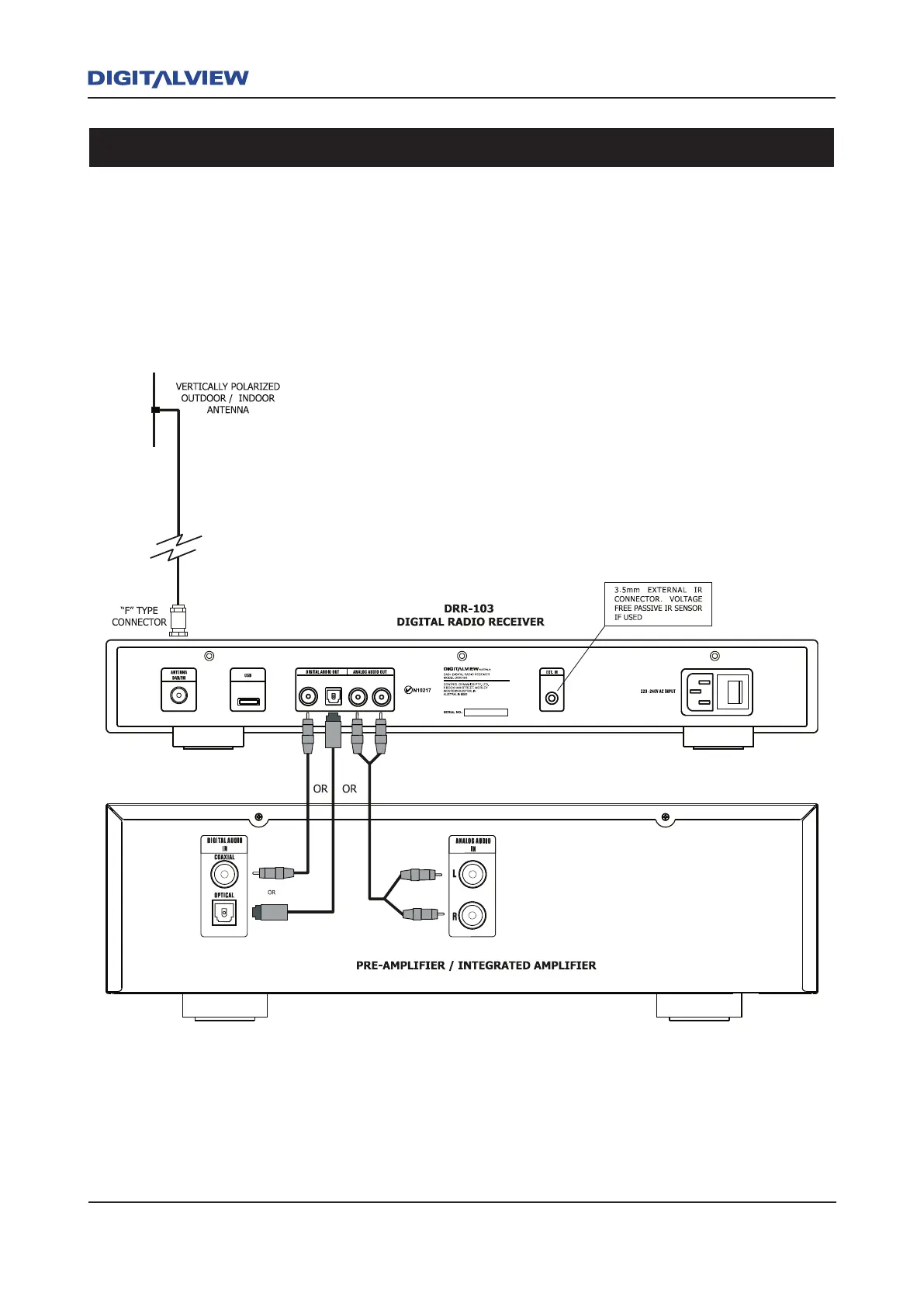

Typical Connection Diagram Using the DRR-103
