IPEX5000 Series Quick Install Guide
15

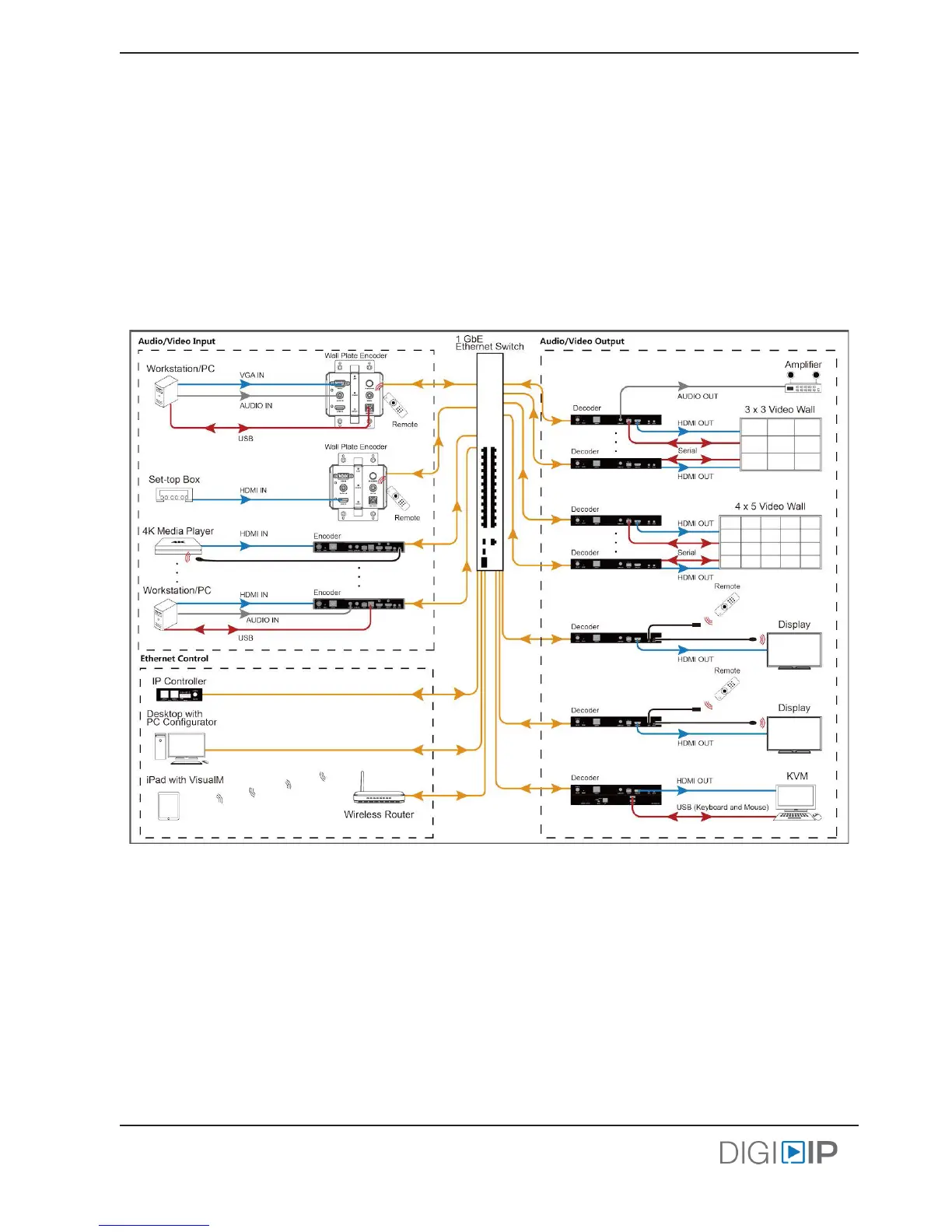

General Operaon / System Diagrams
Matrix, Switch, Distribuon Amplier
With mulple encoders and decoders, an IPEX5000 series installaon can be congured to be a video matrix, video
switch, and a distribuon amplier. The video conguraons and signal routes can be easily changed through the
Digitalinx IP Control soware for Windows and iPad or through a third party controller.
Please see the Digitalinx IP Deployment Guide for conguring this funconality.
