DigiTech RP100A - Rear Panel Connections; Input;Output;Headphone Jacks; Control and Power Inputs

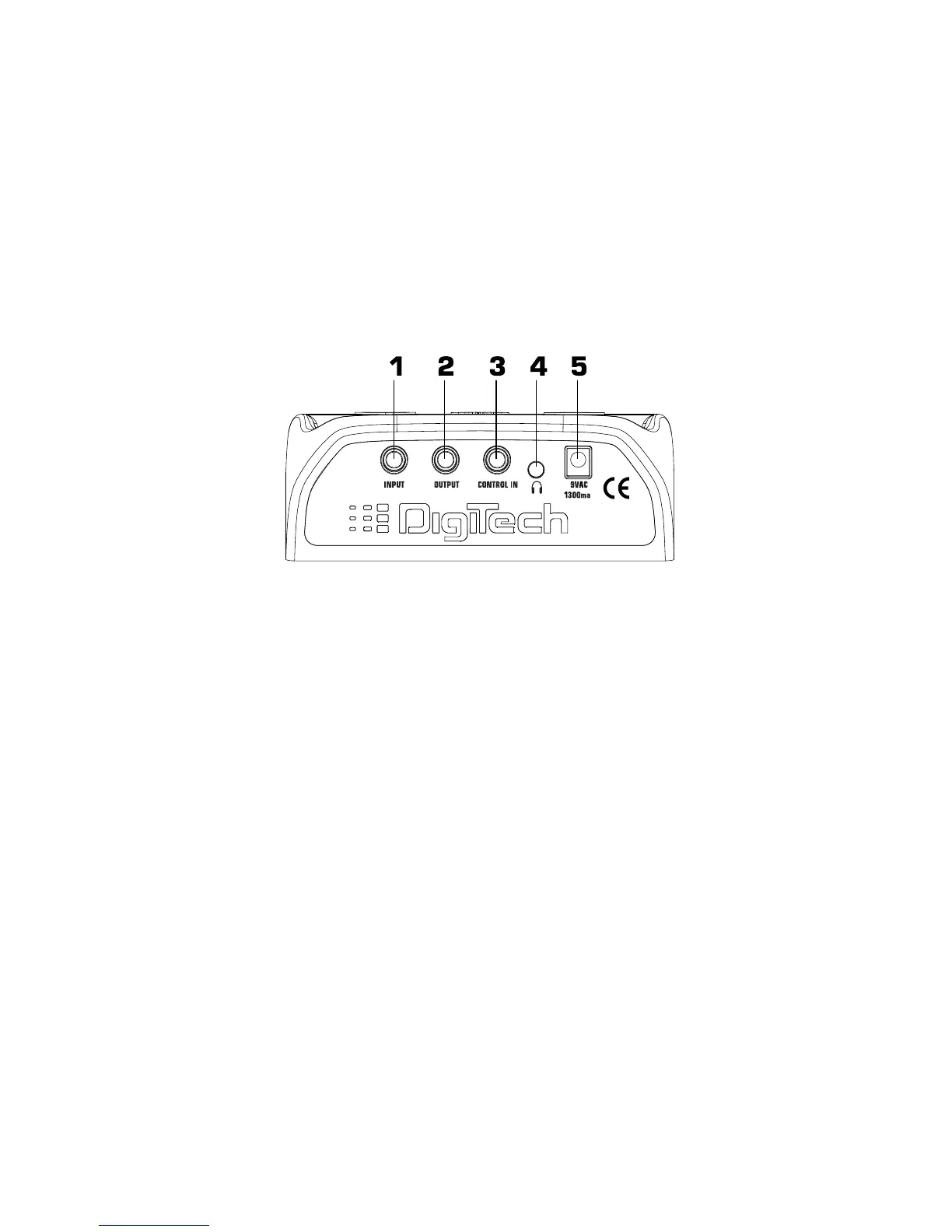

Rear Panel
1. Input - Connect your instrument to this jack.
2. Output - This is a stereo TRS jack. Connect from this jack to the input of a single amplifier for
mono applications, or use a TRS stereo “Y” cord to connect to the inputs of 2
amplifiers for stereo applications.
3. Control In - Connect an expression pedal or volume pedal to this jack for the purpose of
controlling Volume, Wah, or Whammy™in the RP100 Artist.
4. Headphones - Connect a pair of stereo headphones to this jack.
5. Power Input - Connect only the optional DigiTech PS0913B power supply to this jack.
