Rear Panel

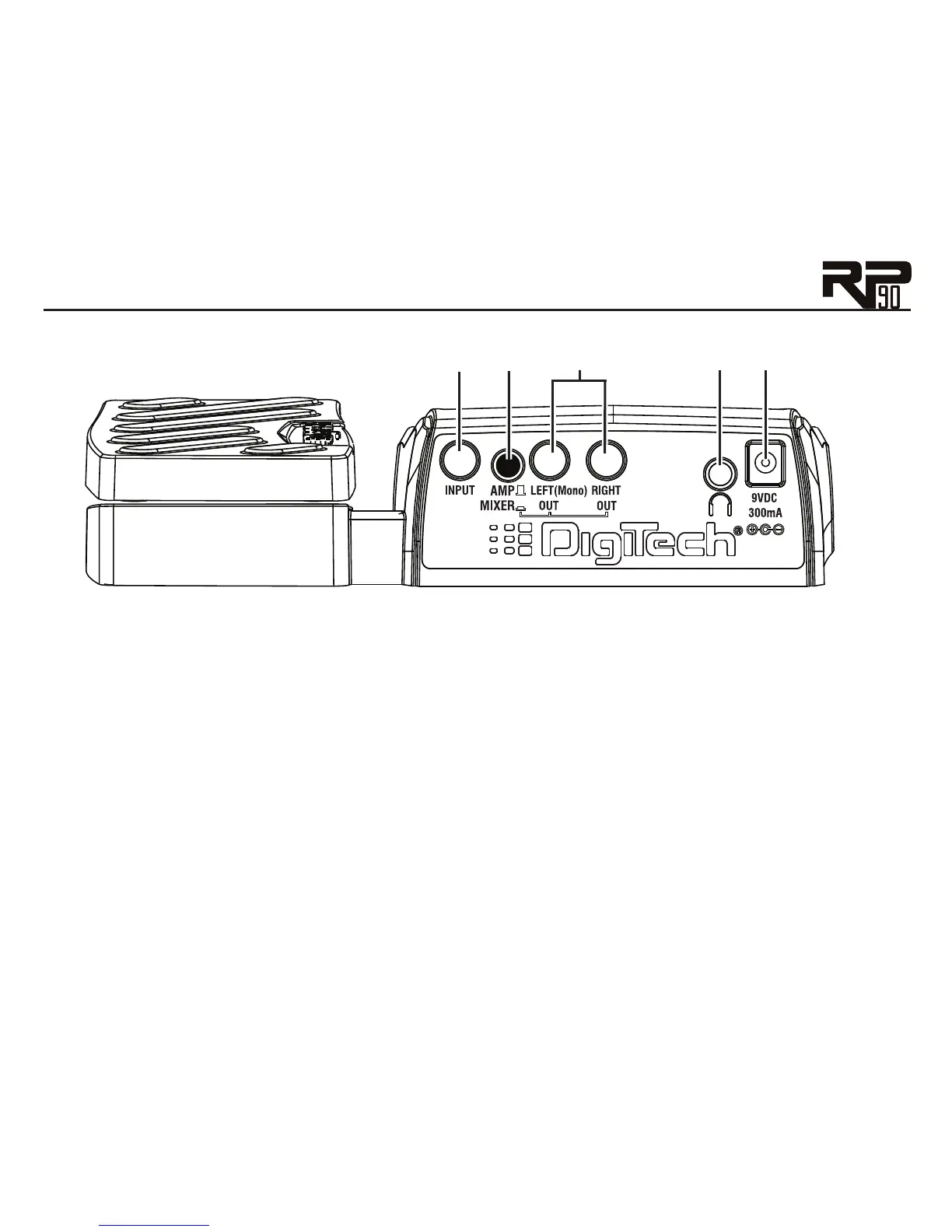

1 2 3 4 5
Input
Connect your instrument to this high-impedance TS input.
Amp / Mixer
This button optimizes the RP90’s outputs for use when plugged into a guitar amp or a
mixer/recording device. When set to Mixer (“In” position), the outputs are optimized for
connecting to a mixer, recording device or headphones. When set to Amp (“Out” position),
the outputs are optimized for running directly in to the input of a guitar amp.
Left (Mono) and Right Outputs
Connect the Left (Mono) output to the input of a single amplifier (or mixer input) for mono
operation. Connect the Left and Right outputs to the inputs of 2 amplifiers (or 2 mixer
channels) for stereo operation.
