Digitrax Evolution Express Series - Page 4

© 2020 Digitrax, Inc. www.digitrax.com
4
R
Left Throttle Active
sp 0 %
Right: 0003
<Rev sp0 %
IDLE
0000
LN Trk
0 1 2 3 4 5 6 7 8 9
Fn+00
L<=>R Fn Info+
Power/
Back Key
A,B,C Soft
Keys
Loco Key
Menu Key
0-9
Numeric
Keys
Exit/Stop
Key
D,E,FSoft
Keys
Switch
Key
Color LCD
screen
Right throttle
knob
Right direction
change key
Left throttle
knob
Left
direction
change key
Model ID

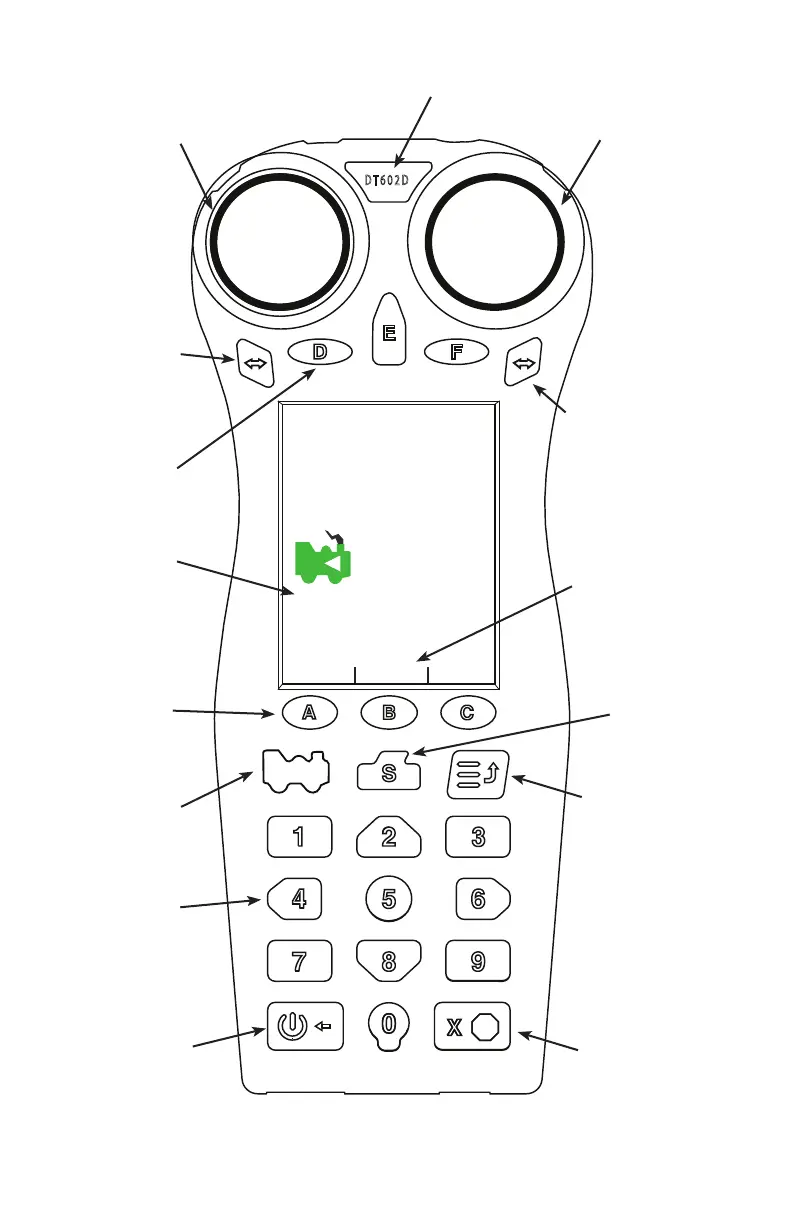

Figure 1: DT602 family- keypad and LCD screen
Soft key
meanings
