4.4. Switching mode4
Switching mode 4 includes an SR - Flipflop - Logic (SET-RESET-Logic) with broken-wire security for
the reset input.
over
over
length
length
Impuls.
length

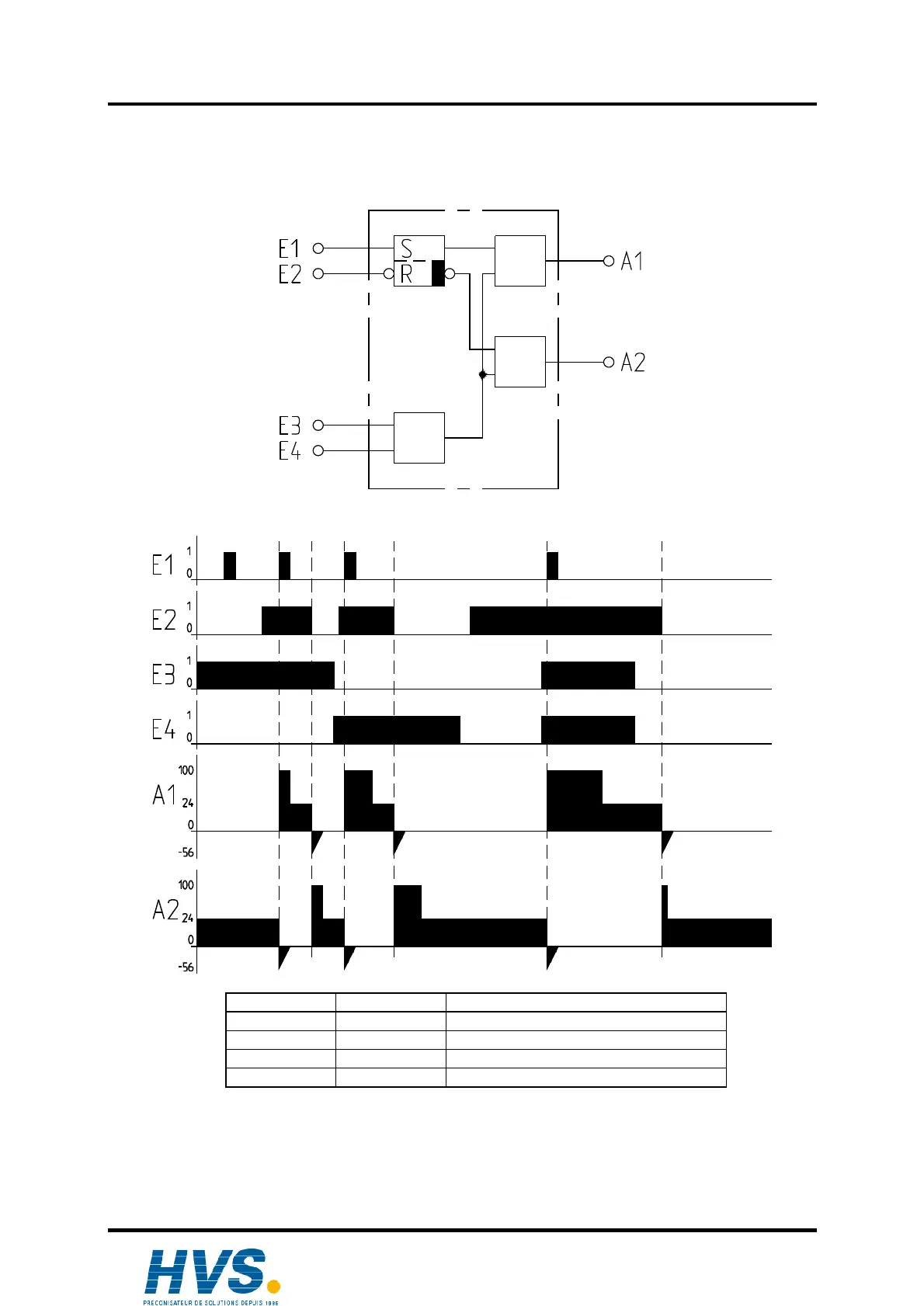

Time-diagram:
Input 3 Input 4Duration of the over-energizing impulse
0 VDC 0 VDC 1 ms
+24 VDC 0 VDC 2 ms
0 VDC +24 VDC 5 ms
+24 VDC +24 VDC 10 ms
