Digitronic DIGISPEED DS1/V2 - 4 Switching Modes in DIGISPEED; Switching Mode 1 (Factory Preset)

Digitronic Digitaler Schaltbeschleuniger
Automationsanlagen GmbH DIGISPEED DS1/V2
4. Switching modes in DIGISPEED
DIGISPEED can be programed for four types of Logic-behaviour. This gives the user the possibility to
process time-critical Logic-function out of an PLC-controll.
4.1. Switching mode 1 (factory preset)
Switching mode 1 is the DIGISPEED's standard mode.
over
energ.
over
energ.
impuls.
Length

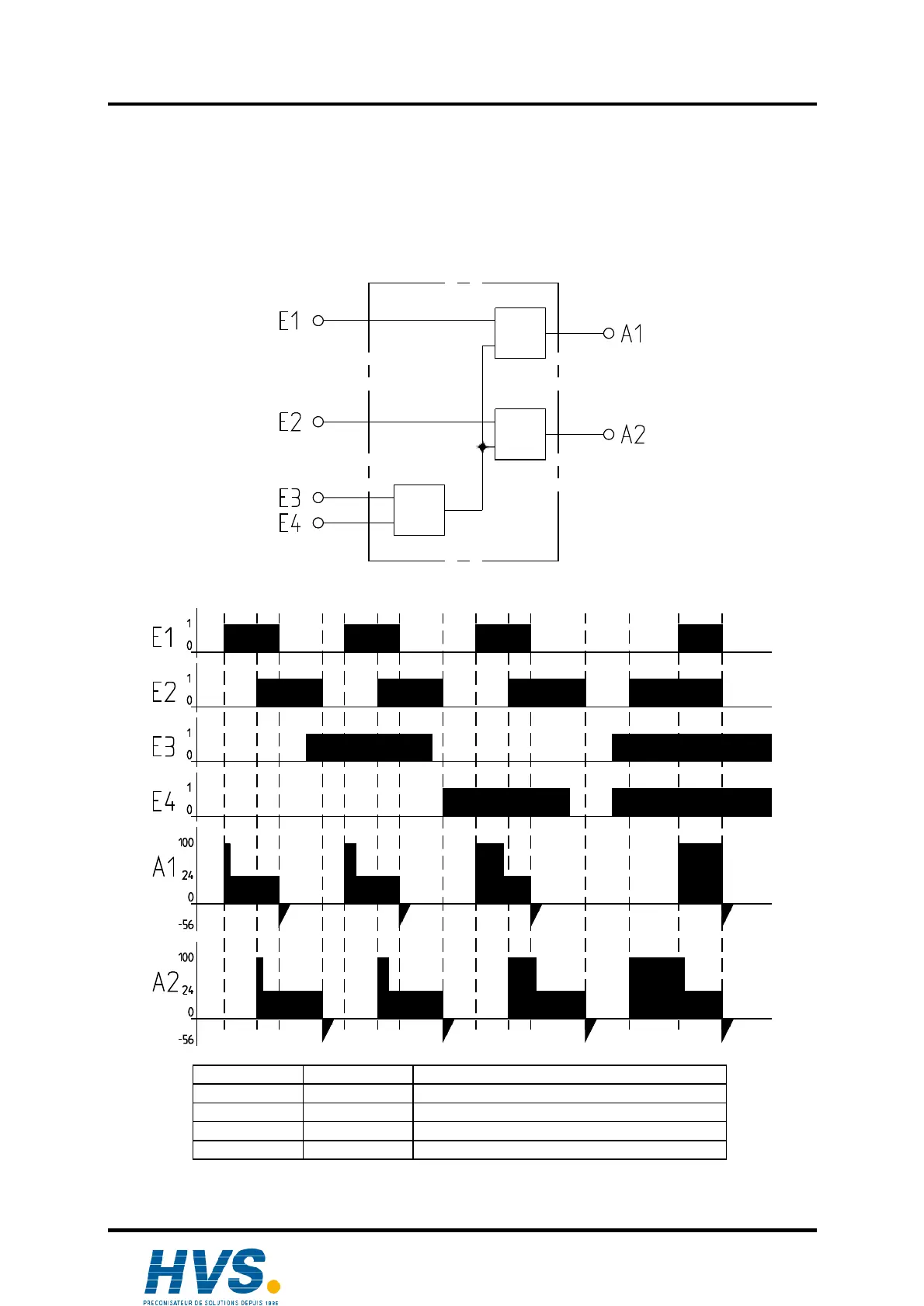

Time-Diagram:
Input 3 Input 4 Duration of the overenergizing impulse
0 VDC 0 VDC 1 ms
+24 VDC 0 VDC 2 ms
0 VDC +24 VDC 5 ms
+24 VDC +24 VDC 10 ms
Ausgabe: August 04 Seite: 7
