4.3. Switching mode3
Switching mode 3 was designed specially for magnetic double-coils (drive elements).
over
over
energ.
energ.
switch
Impuls.
length

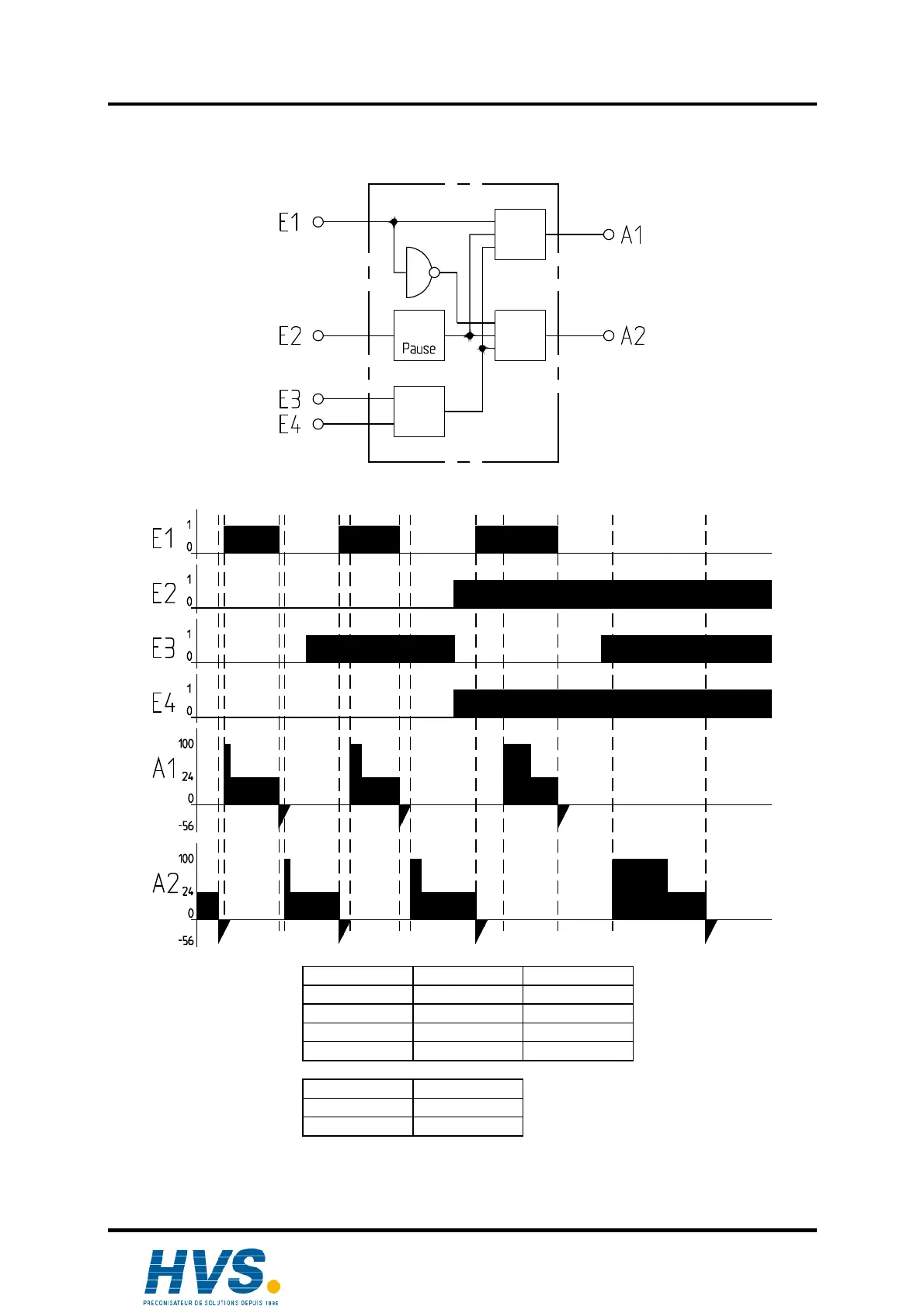

Time-Diagram:
Input 3 Input 4 Ü-Zeit *
0 VDC 0 VDC 1 ms
+24 VDC 0 VDC 2 ms
0 VDC +24 VDC 5 ms
+24 VDC +24 VDC 10 ms
Input 2 Pause**
0 VDC Ü-Zeit* x 2
+24 VDC Ü-Zeit* x 1
*Ü-Zeit: Duration of the over-energizing impulse
**Pause: Time between the switching off of coil 1 and the switching on off coil 2 or vice versa. It canb be
calculated by multiplying the Ü-Zeit with 2 or 1.
