Digitronic Digitaler Schaltbeschleuniger
Automationsanlagen GmbH DIGISPEED DS1/V2
4.2. Switching mode 2
Switching mode 2 includes an enableling - input E3 (AND - Linkage).
over
over
energ.
energ.
Impul.
length

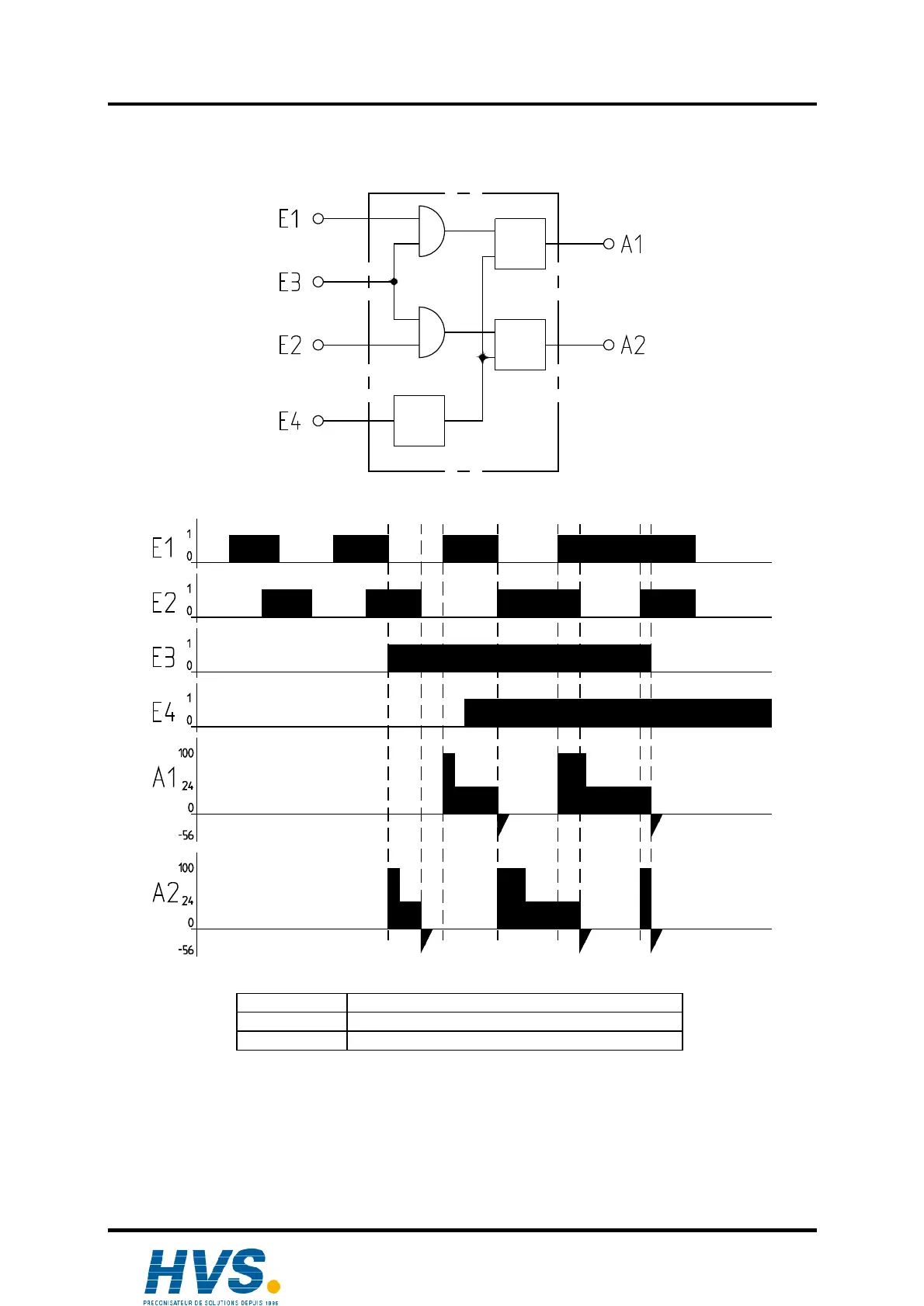

Time-Diagram:
Input 4 Duration of the overenergizing impulse
0 VDC 2 ms
+24 VDC 5 ms
