13

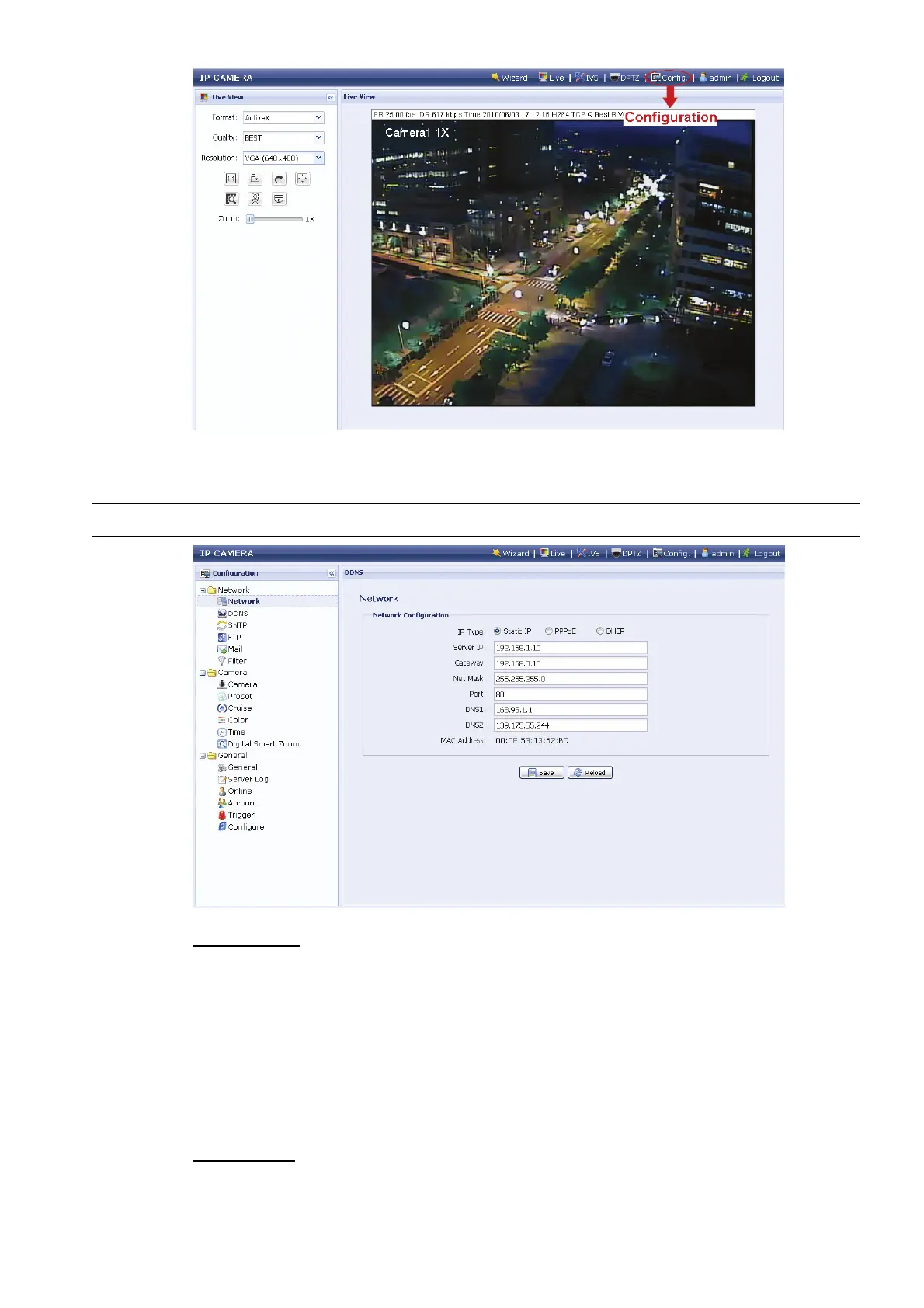

Step4: Click “Network” “Network” to select the connection type: Static IP / PPPoE /
DHCP.
Note: This camera doesn’t support POE router or hub.
For Static IP:
a) Enter the information of “Server IP”, “Gateway” and “Net Mask” obtained from your ISP
(Internet Service Provider).
b) Enter the port number. The valid number ranges from 1 to 9999. The default value is 80.
Typically, the TCP port used by HTTP is 80. However in some cases, it is better to change
this port number for added flexibility or security.
c) Click “Save” to save your network configurations, and logout.
d) Disconnect your camera and your PC, and connect them to Internet separately. Then, enter
the IP address or host name you just note down in the URL address box of the web browser,
and see if you can access the camera successfully.
For PPPOE:
a) Enter the user name and password obtained from your ISP, and click “Save”.
b) Continue the DDNS setting as instructed in “3.2.2 DDNS Setting”.
To Next Page
