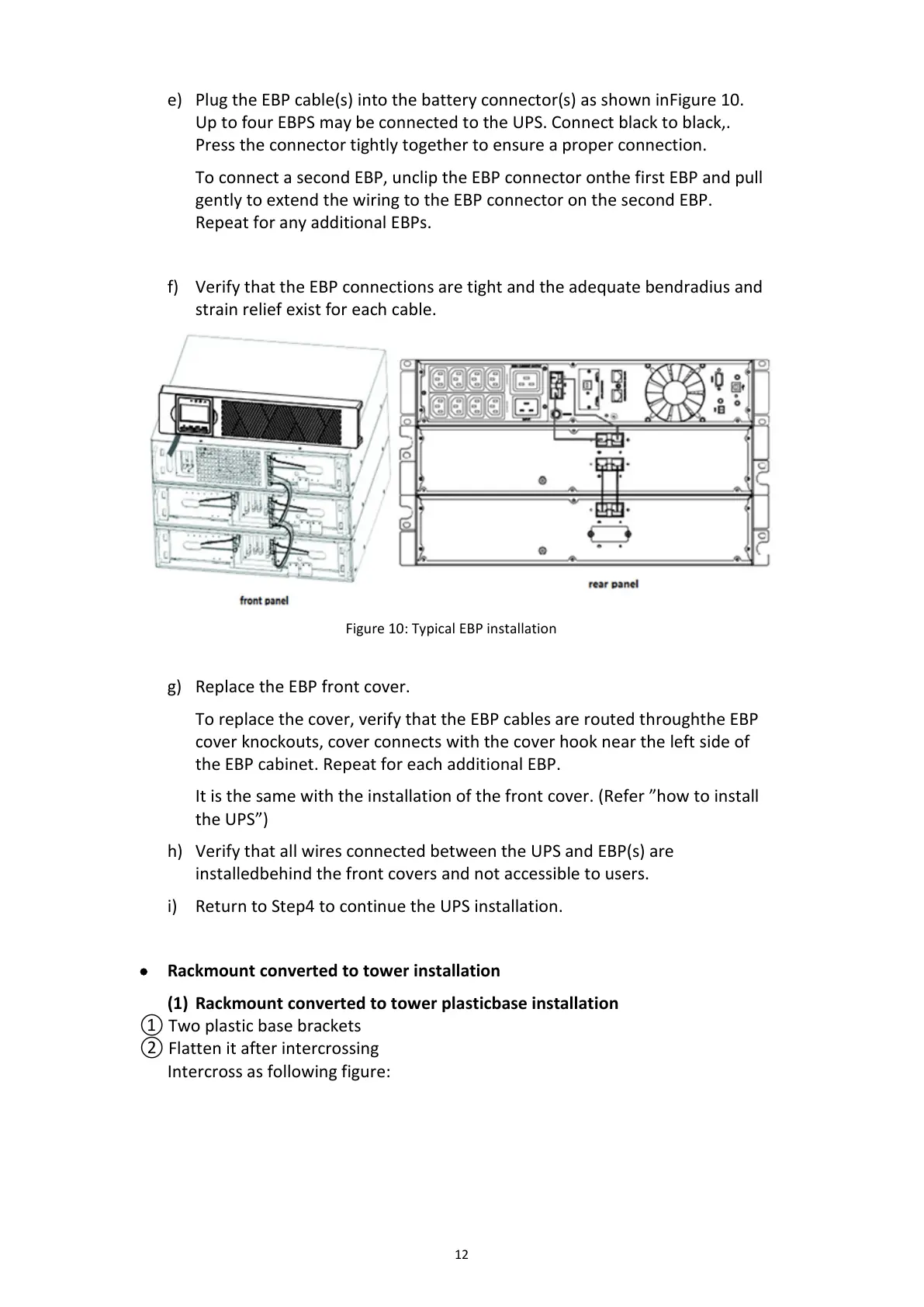

e) Plug the EBP cable(s) into the battery connector(s) as shown inFigure 10.
Up to four EBPS may be connected to the UPS. Connect black to black,.
Press the connector tightly together to ensure a proper connection.
To connect a second EBP, unclip the EBP connector onthe first EBP and pull
gently to extend the wiring to the EBP connector on the second EBP.
Repeat for any additional EBPs.
f) Verify that the EBP connections are tight and the adequate bendradius and
strain relief exist for each cable.
Figure 10: Typical EBP installation
g) Replace the EBP front cover.
To replace the cover, verify that the EBP cables are routed throughthe EBP
cover knockouts, cover connects with the cover hook near the left side of
the EBP cabinet. Repeat for each additional EBP.
It is the same with the installation of the front cover. (Refer ”how to install
the UPS”)
h) Verify that all wires connected between the UPS and EBP(s) are
installedbehind the front covers and not accessible to users.
i) Return to Step4 to continue the UPS installation.
• Rackmount converted to tower installation
(1) Rackmount converted to tower plasticbase installation
① Two plastic base brackets
② Flatten it after intercrossing
Intercross as following figure:
