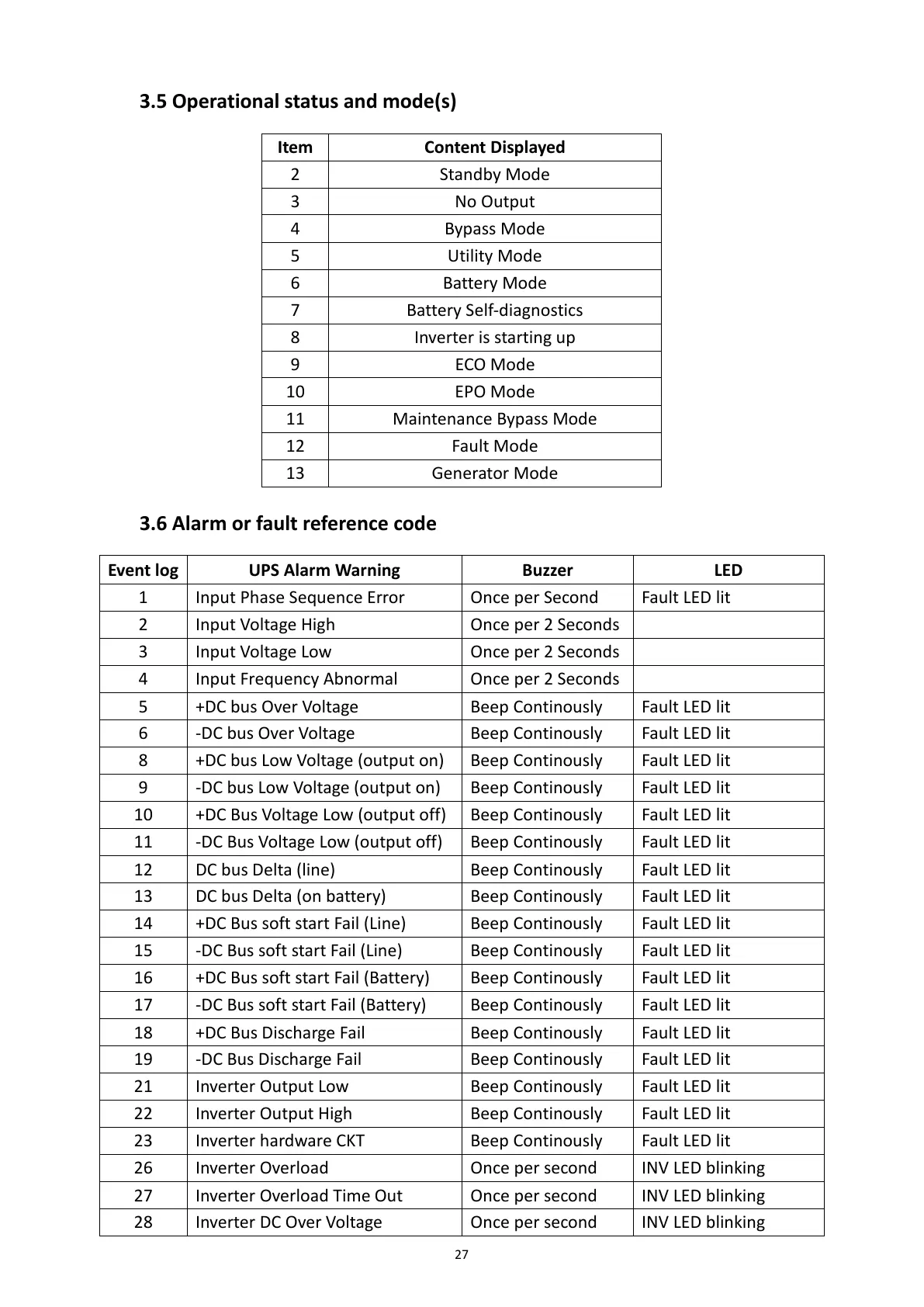

3.5 Operational status and mode(s)
Item
Content Displayed
2
Standby Mode
3
No Output
4
Bypass Mode
5
Utility Mode
6
Battery Mode
7
Battery Self-diagnostics
8
Inverter is starting up
9
ECO Mode
10
EPO Mode
11
Maintenance Bypass Mode
12
Fault Mode
13
Generator Mode
3.6 Alarm or fault reference code
Event log
UPS Alarm Warning
Buzzer
LED
1
Input Phase Sequence Error
Once per Second
Fault LED lit
2
Input Voltage High
Once per 2 Seconds
3
Input Voltage Low
Once per 2 Seconds
4
Input Frequency Abnormal
Once per 2 Seconds
5
+DC bus Over Voltage
Beep Continously
Fault LED lit
6
-DC bus Over Voltage
Beep Continously
Fault LED lit
8
+DC bus Low Voltage (output on)
Beep Continously
Fault LED lit
9
-DC bus Low Voltage (output on)
Beep Continously
Fault LED lit
10
+DC Bus Voltage Low (output off)
Beep Continously
Fault LED lit
11 -DC Bus Voltage Low (output off) Beep Continously Fault LED lit
12
DC bus Delta (line)
Beep Continously
Fault LED lit
13
DC bus Delta (on battery)
Beep Continously
Fault LED lit
14
+DC Bus soft start Fail (Line)
Beep Continously
Fault LED lit
15
-DC Bus soft start Fail (Line)
Beep Continously
Fault LED lit
16
+DC Bus soft start Fail (Battery)
Beep Continously
Fault LED lit
17
-DC Bus soft start Fail (Battery)
Beep Continously
Fault LED lit
18
+DC Bus Discharge Fail
Beep Continously
Fault LED lit
19
-DC Bus Discharge Fail
Beep Continously
Fault LED lit
21
Inverter Output Low
Beep Continously
Fault LED lit
22
Inverter Output High
Beep Continously
Fault LED lit
23
Inverter hardware CKT
Beep Continously
Fault LED lit
26
Inverter Overload
Once per second
INV LED blinking
27
Inverter Overload Time Out
Once per second
INV LED blinking
28
Inverter DC Over Voltage
Once per second
INV LED blinking
