10

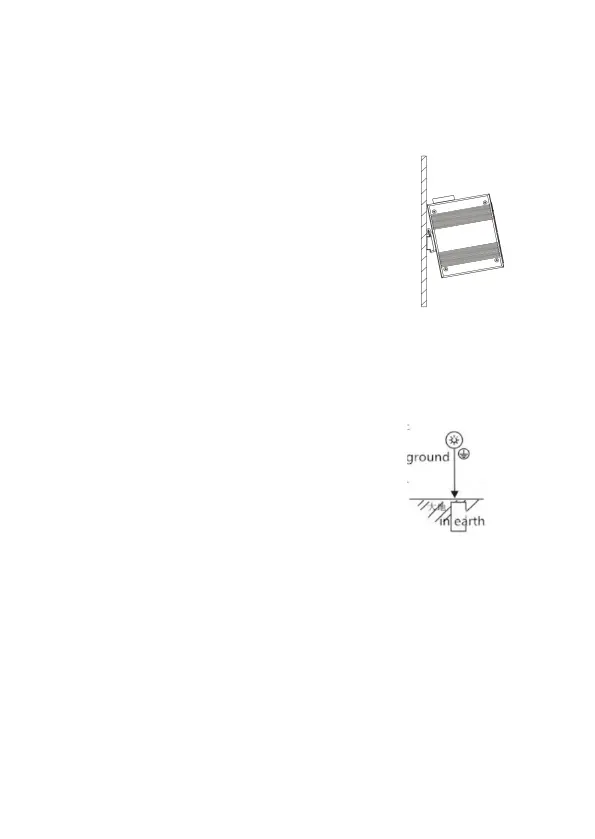

7.2 Din rail installation
The first step is to check the grounding
and stability of the guide rail: the guide
rail slot of the switch is clamped into
the guide rail; the second step: from
the center to both sides of the guide
rail positioning screws in order. Step 3:
Use screws to fix the mounting rail card
slot on the fixed guide groove at both
ends of the guide rail to ensure that the
guide rail and the switch are fixed on
the guide rail vertically and stably.
7.3 grounding
Fix the grounding wire to the
grounding screw above the switch,
and ensure good reliable
connection of the grounding
system.
7.4 Power Connection
Insert the power cord into the specified position of the
6-core terminal, and insert the terminal into the
standard power supply inlet (P+1 and P-1 input
corresponding to the first power supply P1, and P+2
and P-2 input corresponding to the second power
supply P2).
