5. Switch Panel

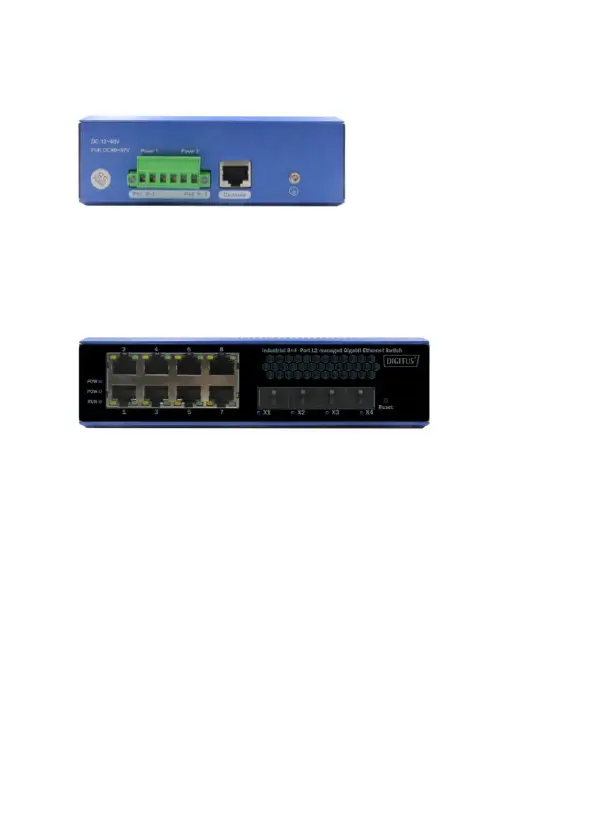

Side panel: P1 and P2 are the number of connecting
terminals, P+1 and P-1 are respectively to the positive
and negative poles to be connected; Earthing screw
used for earthing equipment.
Front panel: the yellow light on RJ45 port is the link
light. It is on, when the connection is established and
the transmission data is flashing. The green light on
RJ45 port is the POE light, which is only on when the
switch port supplies power to the downlink PD. Green
LED on is for system operation. The power indicator
“POW” shows whether the current device is received
power in normal.
There are also green LED for optical link status.
