Digitus DS-55100 Manual

6.0 Connection and Operation
1) Plug the fixed HDMI cable of the sender into the HDMI input source.
2) Connect two CAT-5e/6 cables to both the output of the transmitter and
input of the receiver
3) Plug the fixed HDMI cable of the receiver into the HDMI display
(such as: HD-LCD. HD-DLP)
Attention: Insert/Extract cable gently

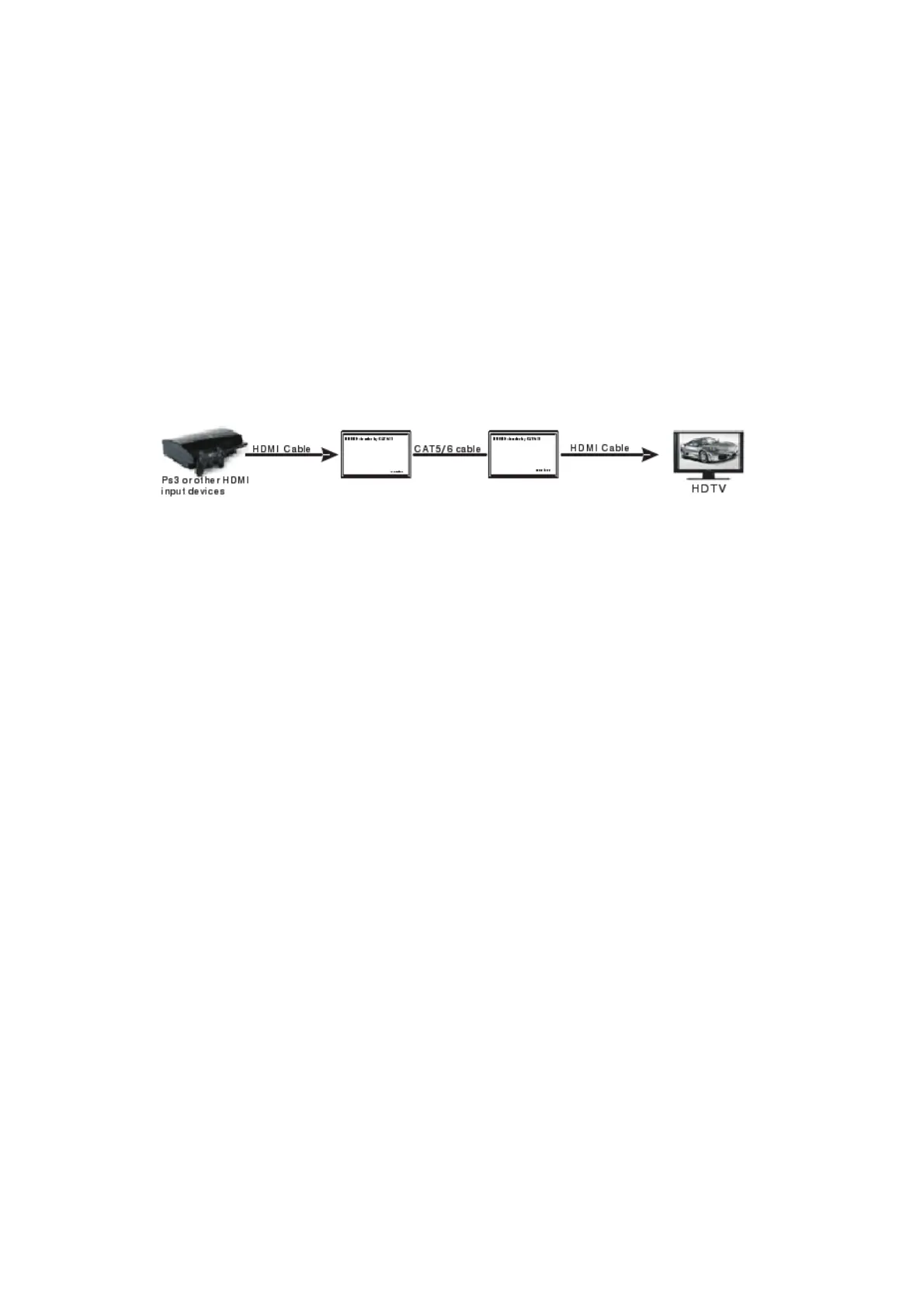

6.1 Connection Diagram

Digitus DS-55100 Specifications

General

Brand	Digitus
Model	DS-55100
Category	Extender
Language	English
