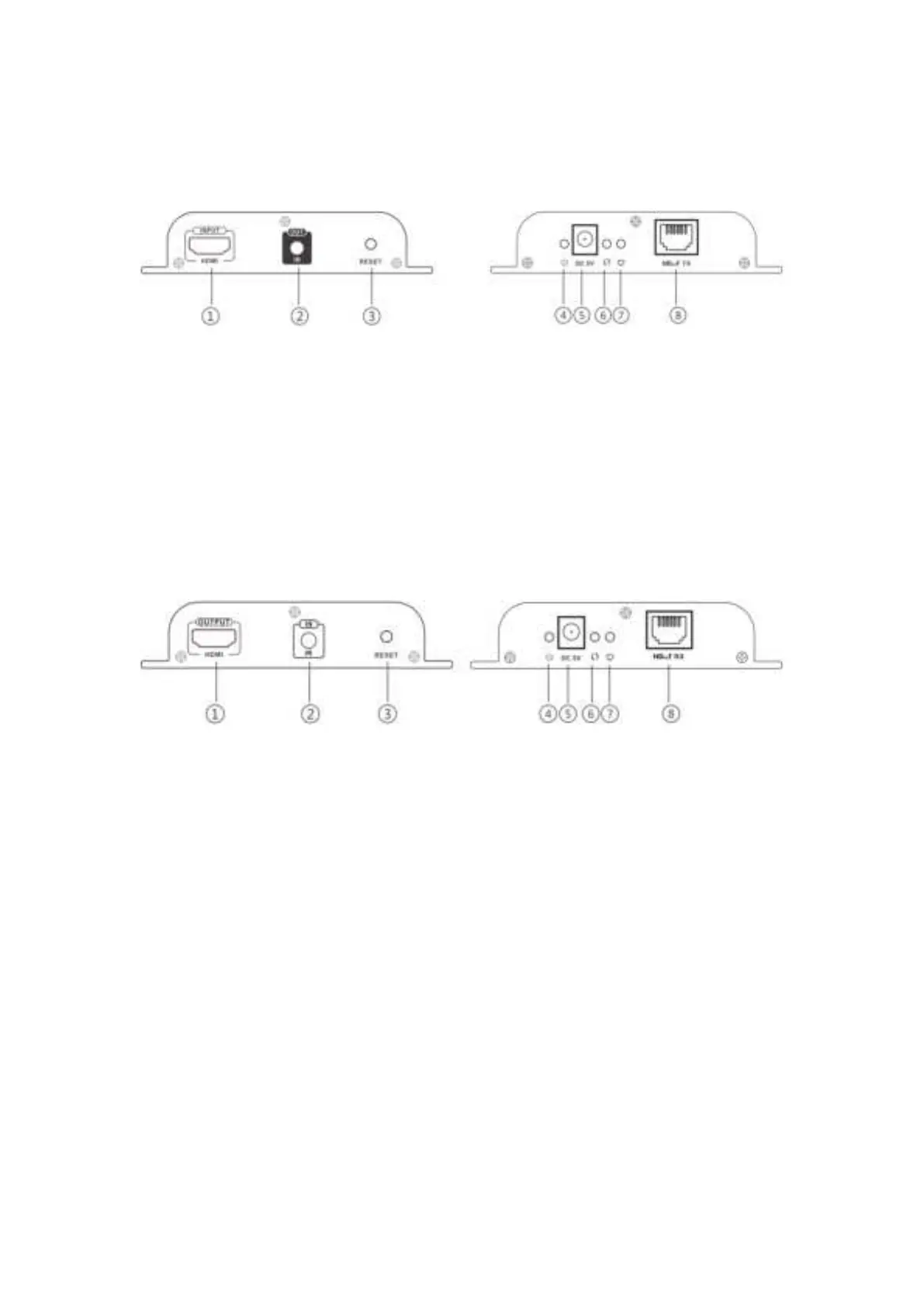

Panel Description
1. HDMI EXTENDER TX (Sender)
① HDMI signal input
② IR signal output to connect with
blaster extension cable
③ Reset
④
Power Light
⑤ Power input (DC5V)
⑥ Data transmission light
⑦ Network link light
⑧ HDbitT signal output
2. HDMI EXTENDER RX (Receiver)
① HDMI signal output
② IR signal input to connect with IR
receiver extension cable
③ Reset
④
Power Light
⑤ Power input (DC5V)
⑥ Data transmission light
⑦ Network link light
⑧ HDbitT signal input
