7
①
Reset button
Press for restarting the unit
②
RJ45 signal input
Input encoded HDMI signal
③
Power indicator
LED indicator turn on when power on
④
DC5V input
Connect with the display supply
⑤
HDMI signal output
Connect with the display device
⑥
IR signal input
Connect with IR receiver extension cable

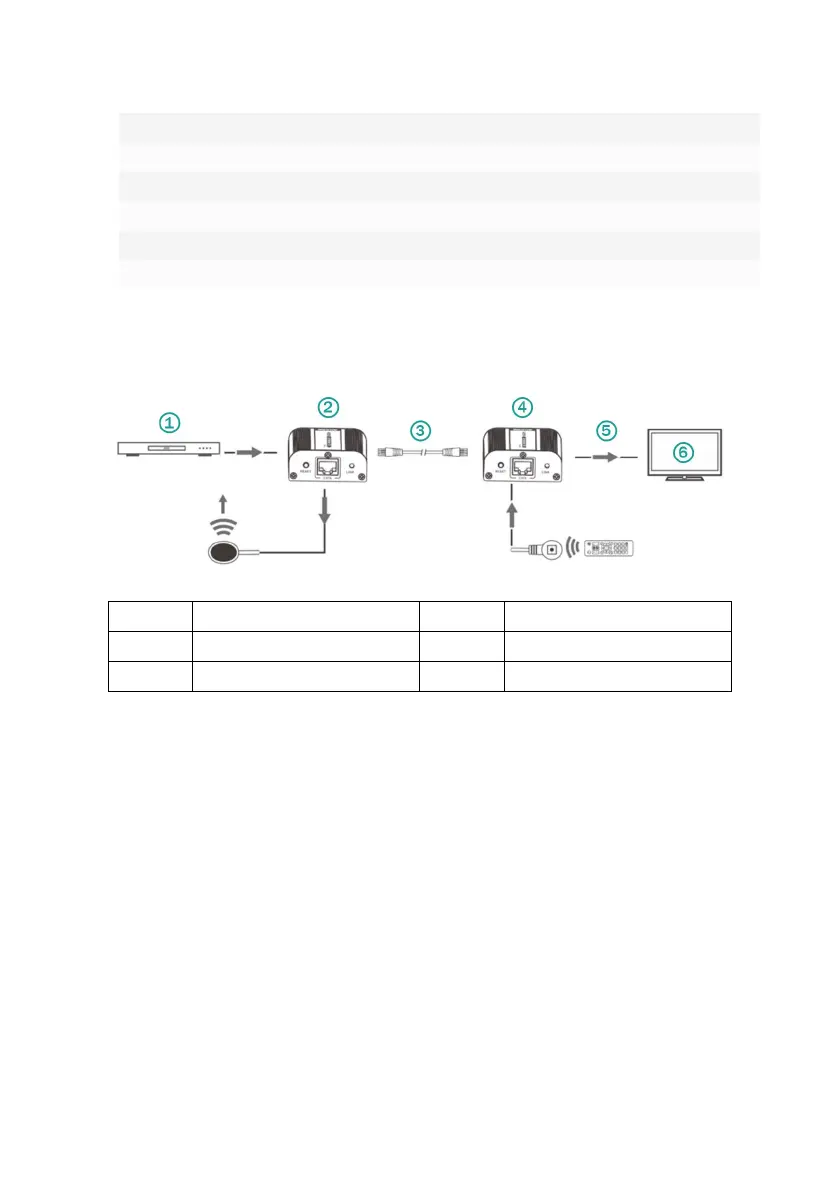

6. Connection
1
DVD
4
HDMI EXTENDER RX
2
HDMI EXTENDER TX
5
HDMI OUT
3
CAT6/6A/Cable
6
HDMI display
6.1 Connection instruction
• Connect source device to Transmitter unit (TX), and display
device to Receiver unit (RX) via HDMI cables.
• Connect Transmitter unit (TX) and Receiver unit (RX) via
network cables (CAT6, CAT6A or CAT7).
• Connect power supplies, this HDMI extender works.
6.2 IR User Guide
• IR blaster extension cable should plug in the IR OUT port of
TX (Transmitter) of HDMI extender, and the IR receiver
