Chapter 2: Card Installation
Identifying Communication Ports
The TE400 Series cards consists of four RJ45 ports and four status LEDs.
The ports are used for connecting T1, E1, or J1 cables. Refer to Figure 4
on page 25 or Figure 5 on page 26 to locate the ports and LEDs.

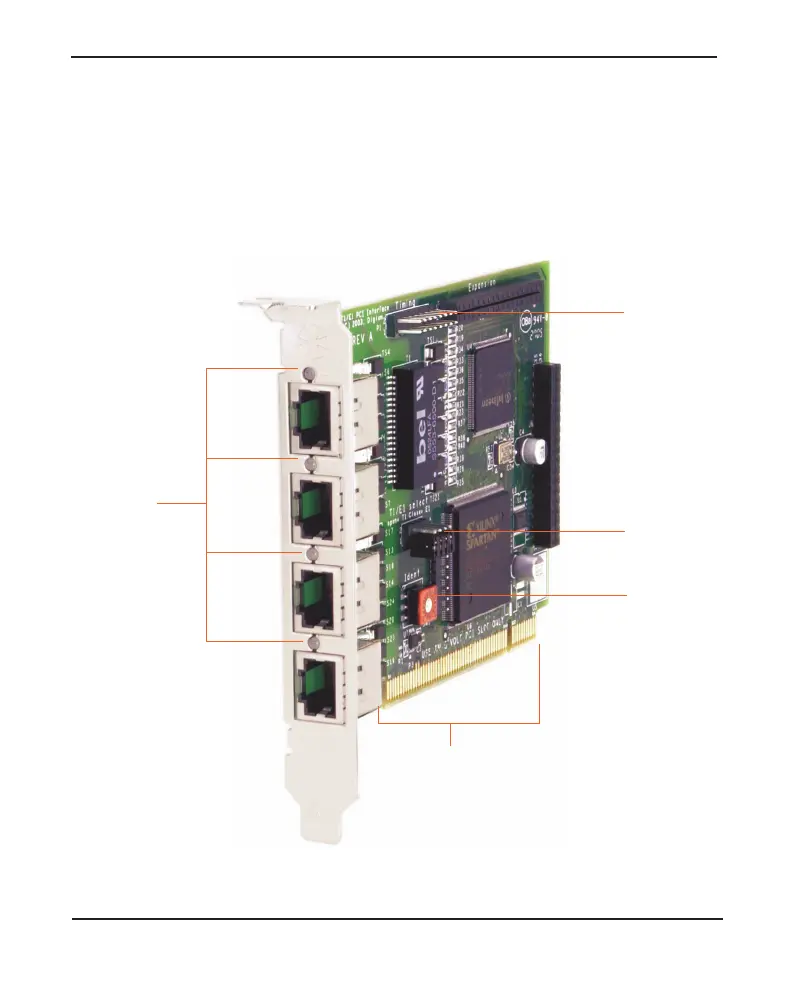

Figure 4: TE405P Card
Ports
1
2
3
4
Ident
Wheel
PCI 2.2
Connector
Jumpers
Timing
Port
Status
LEDs
