Appendix A
Pin Assignments
All four ports on the TE400 Series card bracket are 8-pin RJ45 ports. The
pin assignments are identified in Table A-1.

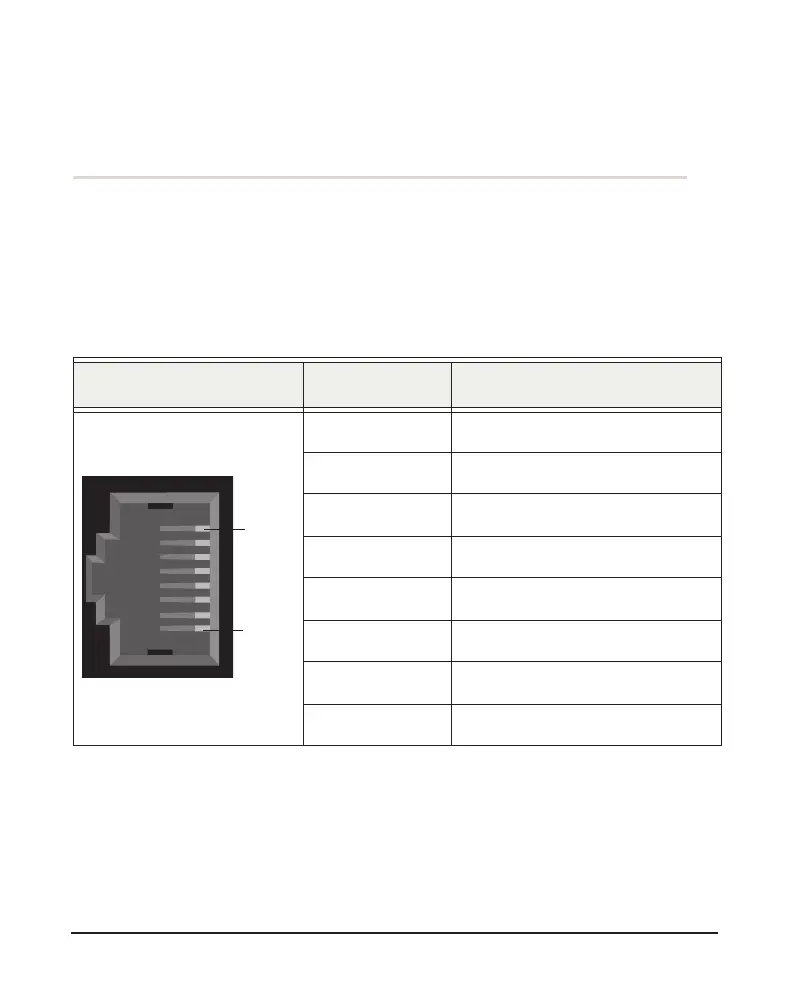

Table A-1: RJ45 Telco Port Connector
Pin Description
1Rx
2Rx
3Not used
4Tx
5Tx
6Not used
7Not used
8Not used
Pin 8
Pin 1
