EDjunior Dynamometer User’s Manual
Power On and Annunciators

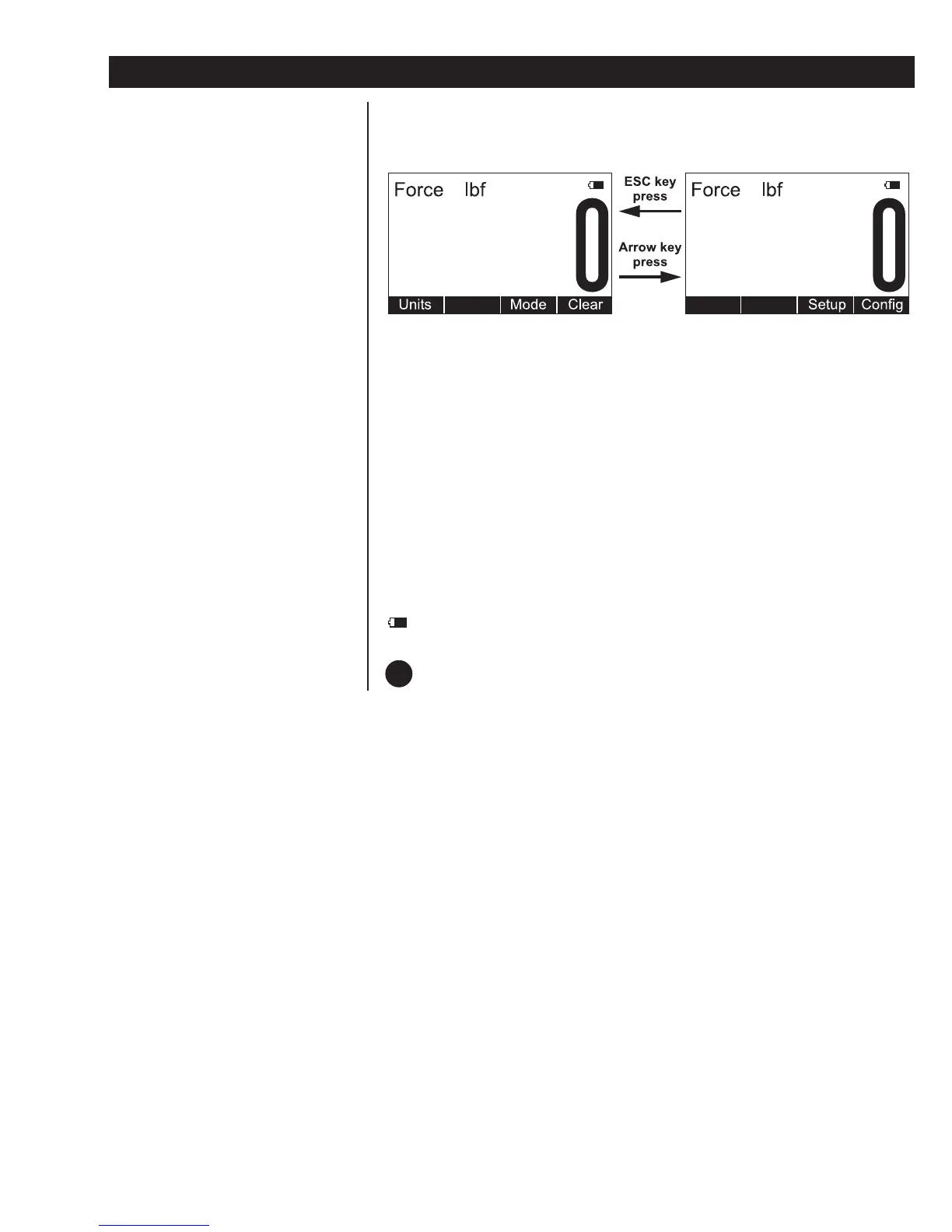

When you power up the EDjr you will see a display similar to the example
shown on the left in Figure 2.
Figure 2
Initial displays
The display sample above shows several symbols you may see on your
display but usually not all at the same time.
Force This tells you that the display is showing live force measurement
at the moment. Will show Peak when viewing Peak Mode.
lbf Current unit of measure is lbf in this example. May also be kgf
or N.
~ Motion symbol. This appears when the force is in motion. This
symbol disappears when motion ceases.
Battery annunciator. This shows approximate remaining battery
life.
Capture of a new peak value. This annunciator will remain lit for
a few seconds.
Depending on permission
settings and/or revision of
firmware, various soft keys
may be in a different location or
not visible.
lbf and kgf are units of force,
not weight. They will be close
to their mass counterparts, lb
and kg, for most applications
and at most locations.
