6.5 Calculating Tension in a System

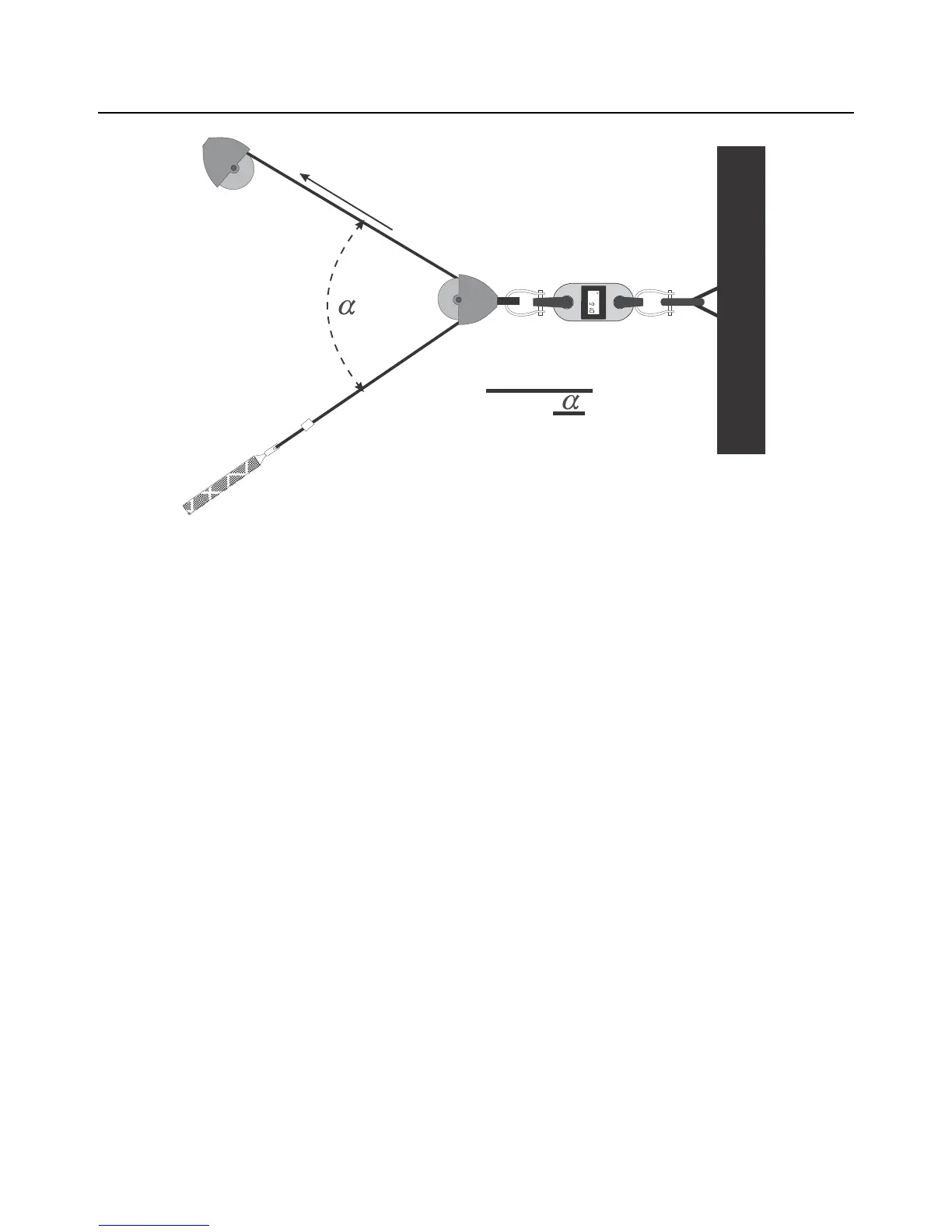

The setup shown above will give you an approximate tension reading. This can vary
from actual tension due to variables in equipment and environment.
Cable
T
T=
2 cos
F
F
2
Truck Winch
