Advanced Force Gauge User’s Manual

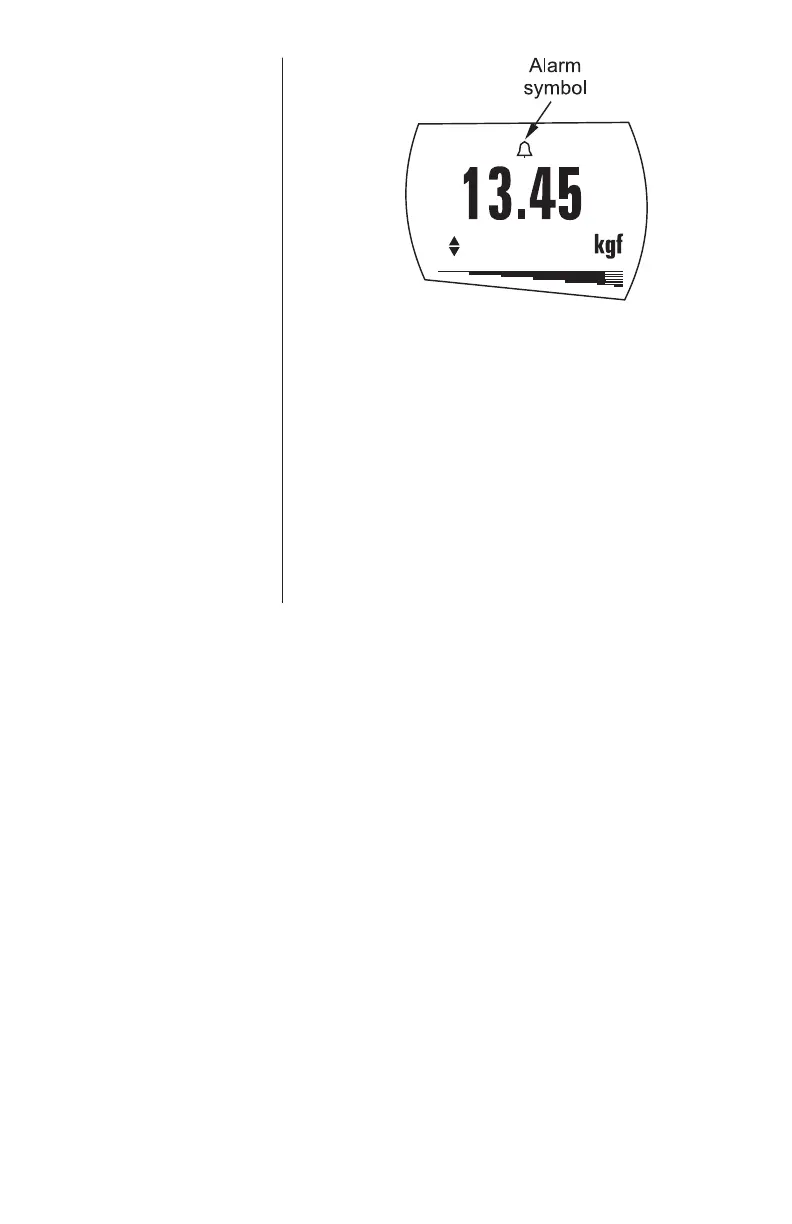

Figure 8

Alarm symbol

ALARM on break This feature is only activated when the % DROP

feature is used in conjunction with the ALARM

function. The AFG looks for a percentage (of full-

scale) drop from peak load value, set in the % DROP

menu. The alarm can be used to indicate if the break

point falls inside or outside the limits LIMIT 1 and

LIMIT 2 set in the alarm menu (see Examples 1 to 5).
