9
DFO2607
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
MAIN ON/OFF SWITCH REPLACEMENT
1. Remove the front glass as shown on page 6 of this manual.
2. Remove the top trim piece by removing the 3 retaining screws.
3. Remove the 10 retaining screws and lift the top off of the unit.

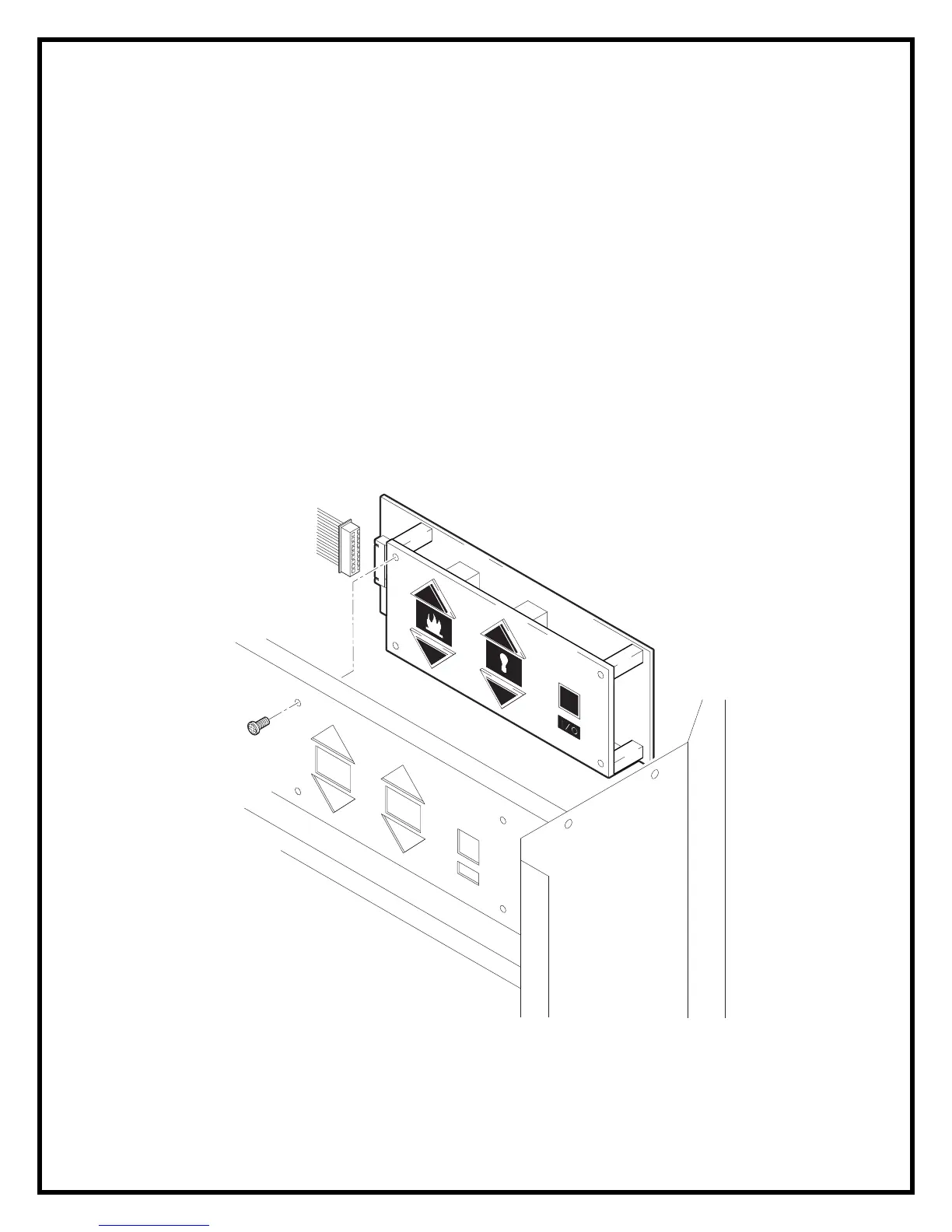

4. Locate the main on/off/flame control mounted on the top panel and disconnect the
wiring plug noting it’s original location.
5. Remove the 4 mounting screws on the front of the top panel and remove the control
from the unit.
6. Reassemble in the reverse order.
