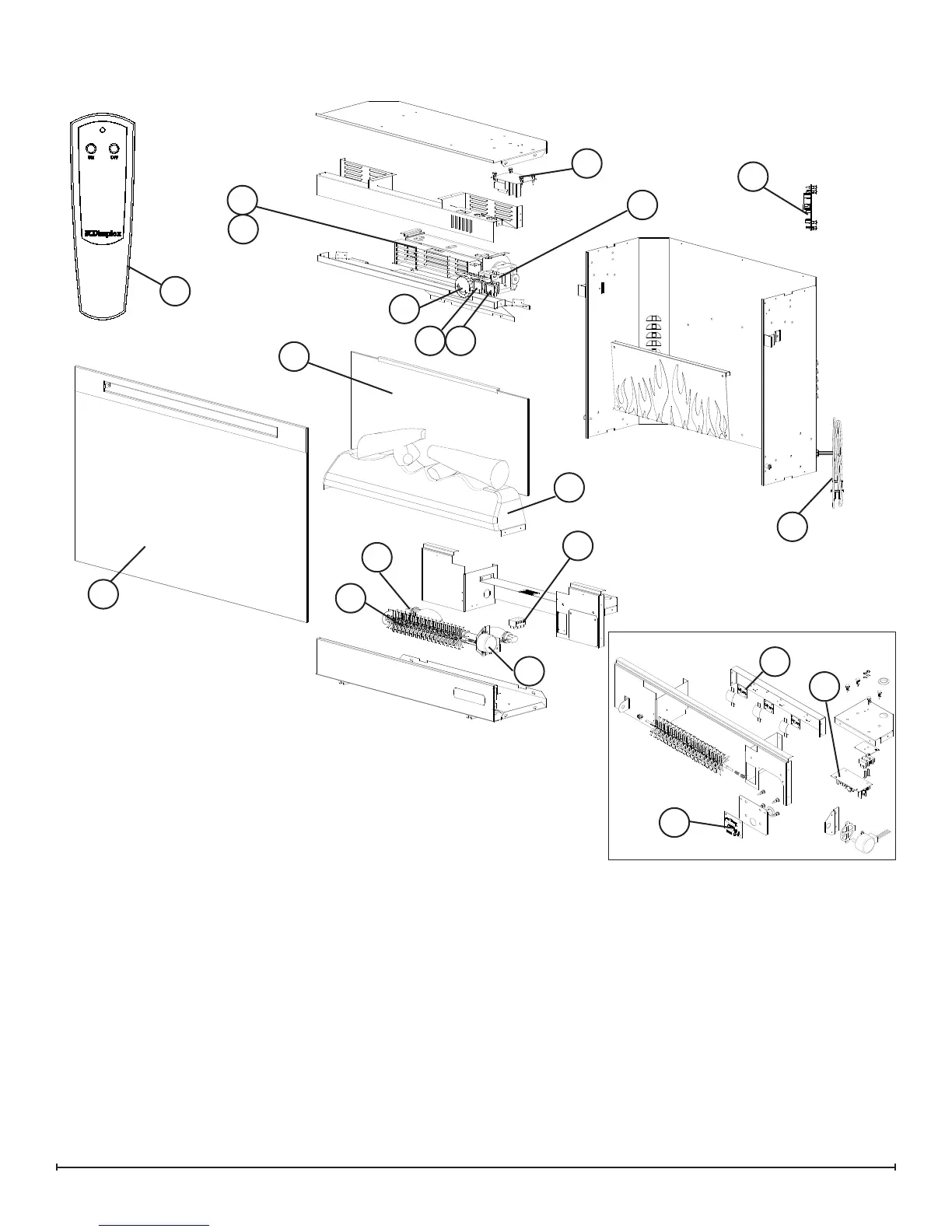

EXPLODED PARTS DIAGRAM - BF9000, 6907560100
1. Remote Control ..................3000370500RP
2. Flicker Motor ....................2000210200RP
3. Heater Assembly (with cutout) .......2200491100RP
4. Thermostat .....................2300150100RP
5. Cutout .........................2300270100RP
6. Light Assembly
Mod 0-A: 2 Socket Light Harness ....2500400500RP
Mod B: LED Light Assembly ........9600810100RP
7. Heater Switch ...................2800070700RP
8. 3-Position Switch .................2800071100RP
9. Remote Control Receiver ..........3000380200RP
10. Terminal Block ...................4000150100RP
11. Power Cord .....................4100040300RP
12. Flicker Rod .....................5901110100RP
13. Partially Reective Glass ..........5901410100RP
14. Control Knob ....................8801080100RP
15. 30” Trim Assembly with Front Glass ..6907580100RP
16. LED Logset Assembly Mod 0-A ......0440590100RP
Mod B .......0440590300RP
17. LED Driver Mod 0-A ..............3000390100RP
Mod B. . . . . . . . . . . . . 3001170100RP
18. LED Wire Harness ................2500380300RP
19. LED Log Driver Board (Mod B only) ..3001220100RP
6
16
2
3
4
5
9
10
87
13
14
12
15
11
1
17
MOD 0-A
MOD B
6
17
19
